Search › Model › CE100
CE100

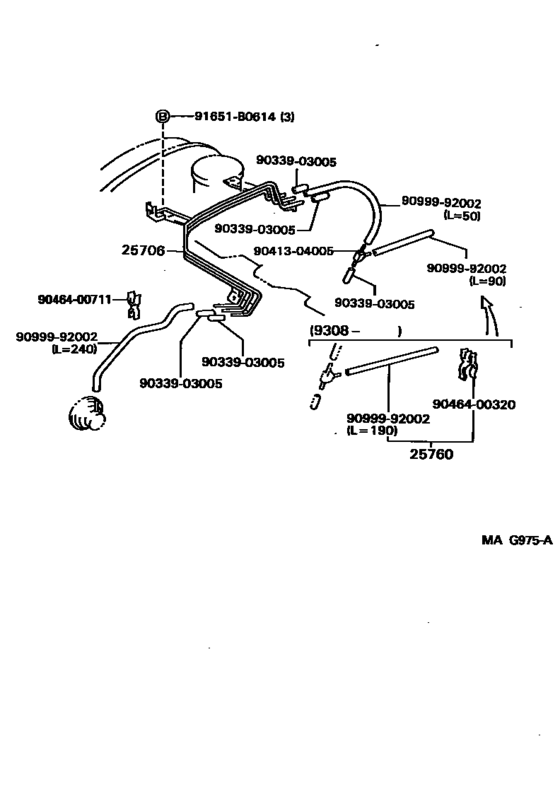

Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) 8
| # | OEM | Part name |
|---|---|---|
| 25706 | 25706-64070 | Pipe Sub-Assy, Vacuum Transmitting, No.1 |
| 25760 | 25760-64120 | Hose Assy, Vacuum Transmitting |
| 91651 | 91651-B0614 | BOLT WWASHER |
| 9033903005 | 90339-03005 | Plug, No.1 |
| 9041304005 | 90413-04005 | Way, 3, No.1 (For Front Drive Shift) |
| 9046400320 | 90464-00320 | New Genuine Part |
| 9046400711 | 90464-00711 | New Genuine Part |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| OEM | Part name | Category |
|---|---|---|
| 25706-64070 | Pipe Sub-Assy, Vacuum Transmitting, No.1 | Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) |
| 25760-64120 | Hose Assy, Vacuum Transmitting | Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) |
| 90339-03005 | Plug, No.1 | Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) |
| 90413-04005 | Way, 3, No.1 (For Front Drive Shift) | Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) |
| 90464-00320 | New Genuine Part | Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) |
| 90464-00711 | New Genuine Part | Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) |
| 91651-B0614 | BOLT WWASHER | Vacuum Piping ([05.1992 - 05.1998] (9205-9805)2C) |
