CE100

Toyota COROLLA · 1991 · 6,557 parts · 433 categories

← Back to categories

6,557 items

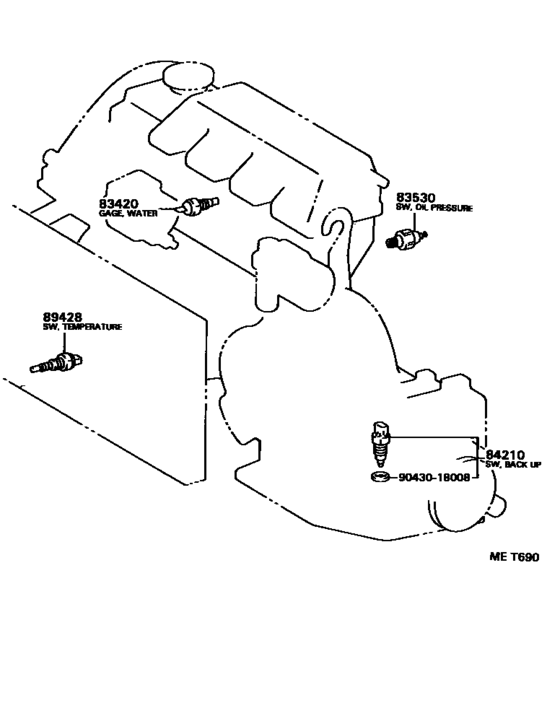

Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100) 8

#	OEM	Part name
83420	83420-20020	Gage Assy, Water Temperature Sender
83530	83530-30100	Switch Assy, Oil Pressure (For Engine)
83530	83530-60010	Switch Assy, Oil Pressure (For Engine)
84210	84210-12040	Switch Assy, Back-Up Lamp
84210	84210-52050	Switch Assy, Back-Up Lamp
89428	89428-33010	Switch, Temperature Detect
9043018008	90430-18008	Gasket
9043018008	90430-T0021	Gasket(For Manual Transmission Filler Plug)

OEM	Part name	Category
83420-20020	Gage Assy, Water Temperature Sender	Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100)
83530-30100	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100)
83530-60010	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100)
84210-12040	Switch Assy, Back-Up Lamp	Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100)
84210-52050	Switch Assy, Back-Up Lamp	Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100)
89428-33010	Switch, Temperature Detect	Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100)
90430-18008	Gasket	Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Switch & Relay & Computer ([05.1992 - ] ENGINE & TRANSMISSION (9205- )CE100)

Source: Public OEM parts-catalog data
Variants: 2 / 26
Category: 433
Collected: 2026-08-02
