Search › Model › CE100

CE100

Toyota COROLLA · 1991 · 6,557 parts · 433 categories

6,557 items

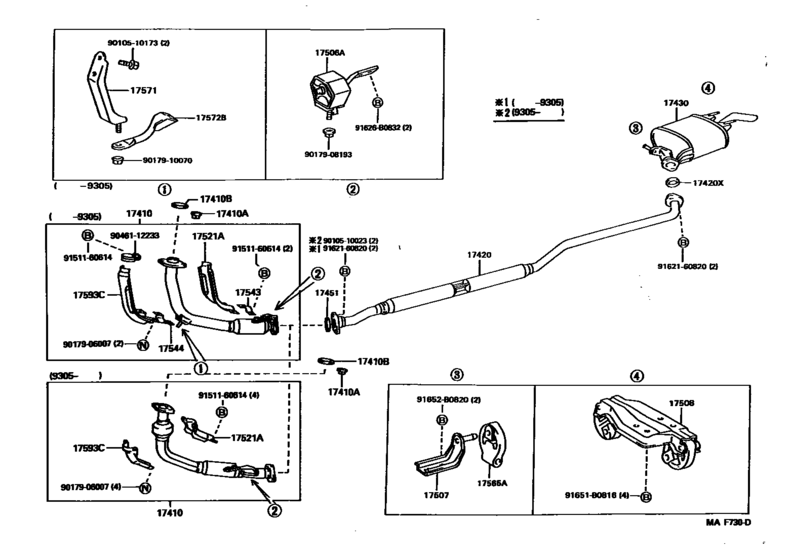

Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C) 34

#	OEM	Part name
17410	17410-64601	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06061	Gasket, Exhaust Pipe
17410	90917-06077	Gasket, Exhaust Pipe
17420	17420-64200	Pipe Assy, Exhaust, Center
17420	90917-06074	Gasket, Exhaust Pipe, Center
17430	17430-64680	Pipe Assy, Exhaust, Tail
17451	90917-06045	Gasket, Exhaust Pipe
17451	90080-43028	Gasket, Exhaust Pipe
17506	17506-16120	Bracket Sub-Assy, Exhaust Pipe No.1 Support
17507	17507-15040	Bracket Sub-Assy, Exhaust Pipe No.2 Support
17508	17508-15050	Support Sub-Assy, Exhaust Pipe, No.3
17521	17521-64100	Protector, Exhaust Pipe, Upper No.1
17521	17521-64120	Protector, Exhaust Pipe, Upper No.1
17565	17565-16230	Support, Exhaust Pipe, No.4
17565	17565-28020	Support, Exhaust Pipe, No.4
17593	17593-64090	Protector, Exhaust Pipe, Lower No.1
17593	17593-64110	Protector, Exhaust Pipe, Lower No.1
91626	91626-B0832	New Genuine Part
91626	91651-B0830	New Genuine Part
91651	91651-B0816	New Genuine Part
91652	91652-B0820	Bolt, Radiator Side Support Plate
91652	91651-B0820	Bolt, Radiator Side Support Plate
9010510023	90105-10023	Bolt
9010510023	91512-81035	BOLT
9010510173	90105-10173	New Genuine Part
9017906007	90179-06007	Nut
9017908193	90179-08193	NUT
9046112233	90461-12233	Clamp
9151160614	91511-60614	LEXBOLT
9151160614	91511-B0614	BOLT, FLANGE
9162160820	91621-60820	New Genuine Part
9162160820	91651-B0822	BOLT WWASHER

OEM	Part name	Category
17410-64601	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17420-64200	Pipe Assy, Exhaust, Center	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17430-64680	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17506-16120	Bracket Sub-Assy, Exhaust Pipe No.1 Support	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17507-15040	Bracket Sub-Assy, Exhaust Pipe No.2 Support	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17508-15050	Support Sub-Assy, Exhaust Pipe, No.3	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17521-64100	Protector, Exhaust Pipe, Upper No.1	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17521-64120	Protector, Exhaust Pipe, Upper No.1	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17565-16230	Support, Exhaust Pipe, No.4	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17565-28020	Support, Exhaust Pipe, No.4	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17593-64090	Protector, Exhaust Pipe, Lower No.1	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
17593-64110	Protector, Exhaust Pipe, Lower No.1	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90080-43028	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90105-10023	Bolt	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90105-10173	New Genuine Part	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90179-06007	Nut	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90179-08193	NUT	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90461-12233	Clamp	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90917-06045	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90917-06061	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90917-06074	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
90917-06077	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91511-60614	LEXBOLT	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91511-B0614	BOLT, FLANGE	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91512-81035	BOLT	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91621-60820	New Genuine Part	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91626-B0832	New Genuine Part	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91651-B0816	New Genuine Part	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91651-B0820	Bolt, Radiator Side Support Plate	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91651-B0822	BOLT WWASHER	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91651-B0830	New Genuine Part	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)
91652-B0820	Bolt, Radiator Side Support Plate	Exhaust Pipe ([05.1992 - 04.2000] (9205-0004)2C)

Source: Public OEM parts-catalog data
Variants: 2 / 26
Category: 433
Collected: 2026-08-02
