Search › Model › CDT250

CDT250

Toyota AVENSIS · 2003 · 3,775 parts · 188 categories

3,775 items

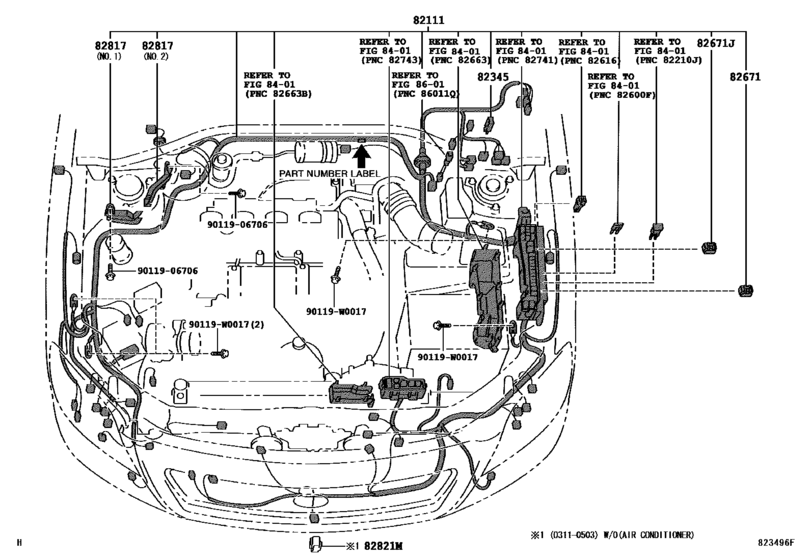

Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD) 21

#	OEM	Part name
82111	82115-05441	Wire, Engine Room Main
82111	82115-05460	Wire, Engine Room Main
82111	82115-05471	Wire, Engine Room Main
82111	82115-05490	Wire, Engine Room Main
82111	82115-05430	Wire, Engine Room Main
82111	82115-05431	Wire, Engine Room Main
82111	82115-05440	Wire, Engine Room Main
82111	82115-05450	Wire, Engine Room Main
82111	82115-05451	Wire, Engine Room Main
82111	82115-05470	Wire, Engine Room Main
82111	82115-05480	Wire, Engine Room Main
82111	82115-05481	Wire, Engine Room Main
82345	82345-12030	Diode
82671	82671-30360	Block, Junction
82671	82671-30370	Block, Junction
82817	82817-05170	Protector, Wiring Harness, No.1
82817	82817-05320	Protector, Wiring Harness, No.1
82821	82821-12400	Cover, Connector
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
9011906706	90119-06706	New Genuine Part

OEM	Part name	Category
82115-05430	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05431	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05440	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05441	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05450	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05451	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05460	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05470	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05471	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05480	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05481	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82115-05490	Wire, Engine Room Main	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82345-12030	Diode	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82671-30360	Block, Junction	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82671-30370	Block, Junction	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82817-05170	Protector, Wiring Harness, No.1	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82817-05320	Protector, Wiring Harness, No.1	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
82821-12400	Cover, Connector	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
90119-06390	BOLT WWASHER	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
90119-06706	New Genuine Part	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
90119-W0017	New Genuine Part	Wiring & Clamp ([03.2003 - 04.2006] ENGINE ROOM (0303-0604)CDT250..RHD)
