Search › Model › CDT250

CDT250

Toyota AVENSIS · 2003 · 3,775 parts · 188 categories
CDT250 ×

← Back to categories

3,775 items

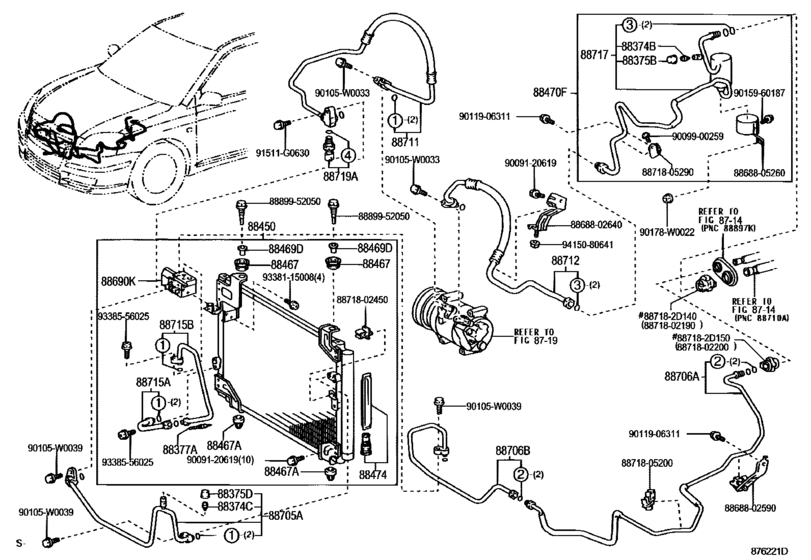

Heating & Air Conditioning - Cooler Piping ([03.2003 - 04.2006] MAKER OPTION (0303-0604)CDT250..RHD) 45
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88377 88377-52010 Filter, Refrigerant
88450 88450-05130 Condenser Assy, W/receiver
88450 88450-05090 Condenser Assy, W/receiver
88467 88467-12180 Cushion, Cooler Condenser, No.1
88467 88467-05010 Cushion, Cooler Condenser, No.2
88469 88469-52010 Collar, Condenser Bracket, No.1
88470 88470-05010 Accumulator & Accessory Assy
88474 88474-17010 Dryer, Cooler
88690 88690-05010 Valve Assy, Magnet
88705 88705-05010 Tube Sub-Assy, Discharge
88706 88706-05050 Tube Sub-Assy, Liquid, A
88706 88706-05070 Tube Sub-Assy, Liquid, B
88711 88711-05250 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-05260 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-05310 Hose, Cooler Refrigerant Suction, No.1
88715 88715-05010 Pipe, Cooler Refrigerant Discharge, A
88715 88715-05020 Pipe, Cooler Refrigerant Discharge, B
88717 88717-05240 Pipe, Cooler Refrigerant Suction, No.1
88719 88719-40020 Sensor, Airconditioner Pressure
90105 90105-W0033 New Genuine Part
90105 90105-W0039 New Genuine Part
90178 90178-W0022 New Genuine Part
91511 91511-G0630 BOLT FLANGE
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8868802590 88688-02590 Bracket, Cooler Diaphragm
8868802640 88688-02640 Bracket, Cooler Diaphragm
8868805260 88688-05260 Bracket, Cooler Diaphragm
8871802190 88718-02190 Pipe, Cooler Refrigerant Suction, No.2
8871802200 88718-02200 Clamp(For Cooler Refrigerant Pipe), No.1
8871802450 88718-02450 Pipe, Cooler Refrigerant Suction, No.2
8871805200 88718-05200 Pipe, Cooler Refrigerant Suction, No.2
8871805290 88718-05290 Pipe, Cooler Refrigerant Suction, No.2
8889952050 88899-52050 Cover, Evaporator
9009120619 90091-20619 BOLT
9009900259 90099-00259 New Genuine Part
9011906311 90119-06311 BOLT
9015960187 90159-60187 SCREW
9338115008 93381-15008 SCREWWWASHER
9338556025 93385-56025 New Genuine Part
9415080641 94150-80641 New Genuine Part
9415080641 94151-80641 NUT FLANGE
