CDT250

Toyota AVENSIS · 2003 · 3,775 parts · 188 categories
CDT250 ×

← Back to categories

3,775 items

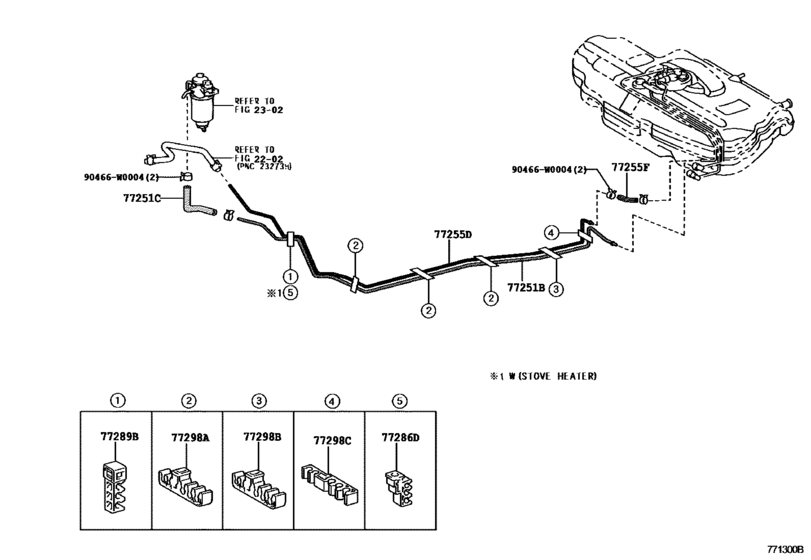

Fuel Tank & Tube ([03.2003 - 05.2006] FUEL TUBE (0303-0605)CDT250) 14
#OEMPart name
77251 77251-05200 Tube, Fuel Main
77251 95337-08019 Hose, Fuel, No.2 (For Fuel Return Tube) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77255 77255-05150 Tube, Fuel Return
77255 95333-08020 Hose, Lpg Injector
77255 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77289 77289-05010 Clamp, Fuel Tube, No.3
77289 77289-20080 Clamp, Fuel Tube, No.1
77298 77298-05010 Clamp, Fuel Tube, No.4
77298 77298-68010 Clamp, Fuel Tube, No.1
77298 77298-05020 Clamp, Fuel Tube, No.4
77298 77298-20110 Clamp, Fuel Tube, No.1
77298 77298-05030 Clamp, Fuel Tube, No.4
77298 77298-68030 Clamp, Fuel Tube, No.1
90466 90466-W0004 Clip(For Fuel Vapor Feed Hose)
