CDT250

Toyota AVENSIS · 2003 · 3,775 parts · 188 categories

3,775 items

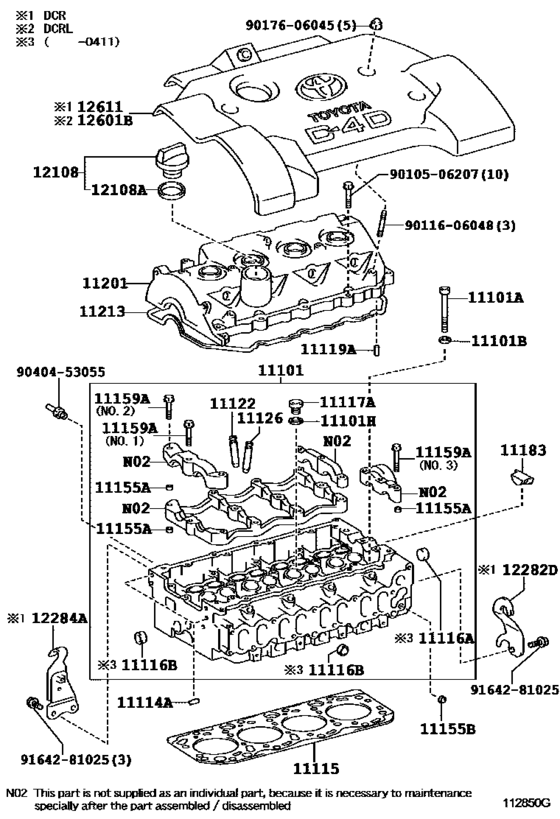

Cylinder Head ([03.2003 - ] (0303- )1CDFTV) 36

#	OEM	Part name
11101	11101-27050	Head Sub-Assy, Cylinder
11101	90910-02136	Bolt(For Cylinder Head Set)
11101	90910-02139	Bolt(For Cylinder Head Set)
11101	90201-11016	Washer, Plate(For Cylinder Head Set)
11101	90430-14008	Gasket(For Water Hole)
11114	90250-06068	Pin, Straight
11115	11115-27011-A0	Gasket, Cylinder Head
11115	11115-27011-B0	Gasket, Cylinder Head
11115	11115-27011-C0	Gasket, Cylinder Head
11115	11115-27011-D0	Gasket, Cylinder Head
11115	11115-27011-E0	Gasket, Cylinder Head
11117	90341-14008	Plug, W/head Taper Screw, No.1
11119	90250-06013	Pin, Straight, No.1
11122	11122-27010	Bush, Intake Valve Guide
11122	11123-27010	Bush, Intake Valve Guide
11155	90253-11021	Pin, Ring
11155	90253-13008	Pin, Ring(For Crankshaft Bearing Cap Set)
11159	90119-08B76	Bolt(For Head To Camshaft Bearing Cap)
11159	91511-80860	Bolt(For Transaxle Case & Transmission Case Setting)
11159	91511-C0835	Bolt(For Transaxle Case & Engine Setting)
11183	11183-64010	Plug, Semicircular
11201	11201-27031	Cover Sub-Assy, Cylinder Head
11213	11213-0G010	Gasket, Cylinder Head Cover
11213	11213-27010	Gasket, Cylinder Head Cover
12108	12180-0N010	Cap Sub-Assy, Oil Filler
12108	12180-21010	Cap Sub-Assy, Oil Filler
12108	90080-43020	Gasket(For Oil Filler Cap)
12108	90430-37140	Gasket(For Oil Filler Cap)
12282	12282-27060	Hanger, Engine, No.2
12284	12284-27020	Hanger, Engine, No.1 Upper
12611	12611-0G020	Cover Sub-Assy, Engine, No.1
9010506207	90105-06207	New Genuine Part
9011606048	90116-06048	Bolt, Stud(For Oil Pan)
9017606045	90176-06045	NUT, CAP CYL HEAD COVER
9040453055	90404-53055	Union, Vacuum Hose
9164281025	91642-81025	BOLT WWASHER

OEM	Part name	Category
11101-27050	Head Sub-Assy, Cylinder	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11115-27011-A0	Gasket, Cylinder Head	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11115-27011-B0	Gasket, Cylinder Head	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11115-27011-C0	Gasket, Cylinder Head	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11115-27011-D0	Gasket, Cylinder Head	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11115-27011-E0	Gasket, Cylinder Head	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11122-27010	Bush, Intake Valve Guide	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11123-27010	Bush, Intake Valve Guide	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11183-64010	Plug, Semicircular	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11201-27031	Cover Sub-Assy, Cylinder Head	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11213-0G010	Gasket, Cylinder Head Cover	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
11213-27010	Gasket, Cylinder Head Cover	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
12180-0N010	Cap Sub-Assy, Oil Filler	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
12180-21010	Cap Sub-Assy, Oil Filler	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
12282-27060	Hanger, Engine, No.2	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
12284-27020	Hanger, Engine, No.1 Upper	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
12611-0G020	Cover Sub-Assy, Engine, No.1	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90080-43020	Gasket(For Oil Filler Cap)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90105-06207	New Genuine Part	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90116-06048	Bolt, Stud(For Oil Pan)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90119-08B76	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90176-06045	NUT, CAP CYL HEAD COVER	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90201-11016	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90250-06013	Pin, Straight, No.1	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90250-06068	Pin, Straight	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90253-11021	Pin, Ring	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90253-13008	Pin, Ring(For Crankshaft Bearing Cap Set)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90341-14008	Plug, W/head Taper Screw, No.1	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90404-53055	Union, Vacuum Hose	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90430-14008	Gasket(For Water Hole)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90910-02136	Bolt(For Cylinder Head Set)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
90910-02139	Bolt(For Cylinder Head Set)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
91511-80860	Bolt(For Transaxle Case & Transmission Case Setting)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
91511-C0835	Bolt(For Transaxle Case & Engine Setting)	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
91642-81025	BOLT WWASHER	Cylinder Head ([03.2003 - ] (0303- )1CDFTV)
