CDT250

Toyota AVENSIS · 2003 · 3,775 parts · 188 categories

← Back to categories

3,775 items

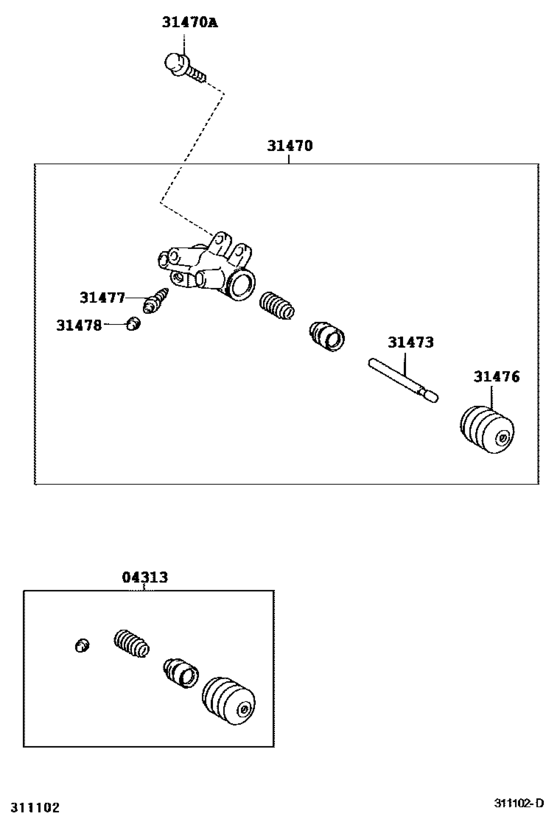

Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F) 10

#	OEM	Part name
4313	04313-52020	Cylinder Kit, Clutch Release
4313	04313-17010	Cylinder Kit, Clutch Release
31470	31470-32023	Cylinder Assy, Clutch Release
31470	90109-08248	Bolt(For Clutch Release Cylinder Setting)
31470	31470-32022	Cylinder Assy, Clutch Release
31473	31473-20031	Rod, Clutch Release Cylinder Push, No.1
31473	31473-22010	Rod, Clutch Release Cylinder Push, No.1
31476	31476-22010	Boot, Clutch Release Cylinder
31477	47547-20010	Plug, Bleeder(For Release Cylinder)
31478	31478-30010	Bleeder Plug Cap

OEM	Part name	Category
04313-17010	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
04313-52020	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
31470-32022	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
31470-32023	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
31473-20031	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
31473-22010	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
31476-22010	Boot, Clutch Release Cylinder	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
31478-30010	Bleeder Plug Cap	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
47547-20010	Plug, Bleeder(For Release Cylinder)	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
90109-08248	Bolt(For Clutch Release Cylinder Setting)	Clutch Release Cylinder ([01.2003 - ] (0301- )AZT250,CDT250..5F)
