Search › Model › CDT220

CDT220

Toyota AVENSIS · 1999 · 3,894 parts · 189 categories

3,894 items

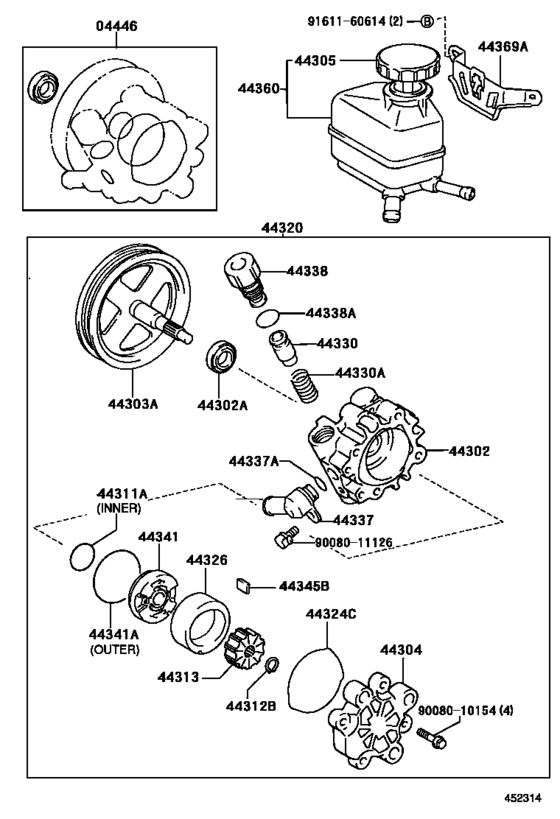

Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220) 45

#	OEM	Part name
4446	04446-02050	Gasket Kit, Power Steering Pump
44302	44302-05030	Housing Sub-Assy, Vane Pump, Front
44302	90080-31063	Seal, Oil, No.1(For Vane Pump Housing)
44303	44303-05020	Shaft Sub-Assy, W/pulley
44304	44304-05010	Housing Sub-Assy, Vane Pump, Rear
44305	44305-20041	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-20050	Cap Sub-Assy, Vane Pump Oil Reservoir
44312	90080-52097	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-02110	Rotor, Vane Pump
44313	44313-02120	Rotor, Vane Pump
44313	44313-02130	Rotor, Vane Pump
44313	44313-02140	Rotor, Vane Pump
44313	44313-02150	Rotor, Vane Pump
44320	44310-05080	Pump Assy, Vane
44324	90080-30057	Ring, O(For Pump Housing Rear)
44326	44325-02210	Ring, Cam(For Vane Pump)
44326	44325-02220	Ring, Cam(For Vane Pump)
44326	44325-02230	Ring, Cam(For Vane Pump)
44326	44325-02240	Ring, Cam(For Vane Pump)
44326	44325-02250	Ring, Cam(For Vane Pump)
44330	44330-05070	Valve Assy, Flow Control
44330	44330-05080	Valve Assy, Flow Control
44330	44330-05090	Valve Assy, Flow Control
44330	44330-05100	Valve Assy, Flow Control
44330	44330-05110	Valve Assy, Flow Control
44330	44330-05120	Valve Assy, Flow Control
44330	90080-50261	Spring, Compression(For Flow Control Valve)
44337	44337-05030	Union, Power Steering Suction Port
44337	90080-30059	Ring, O(For Power Steering Suction Port)
44338	44308-05010	Union, Pressure Port
44338	90080-30056	Ring, O(For Pressure Port Union)
44341	44341-02011	Plate, Vane Pump Side, Front
44341	90080-30055	Ring, O(For Vane Pump Front Side Plate)
44341	90080-30058	Ring, O(For Vane Pump Front Side Plate)
44345	44345-02110	Plate, Vane Pump
44345	44345-02120	Plate, Vane Pump
44345	44345-02130	Plate, Vane Pump
44345	44345-02140	Plate, Vane Pump
44345	44345-02150	Plate, Vane Pump
44360	44360-20160	Reservoir Assy, Vane Pump Oil
44369	44390-20020	Bracket, Oil Reservoir, No.1
9008010154	90080-10154	New Genuine Part
9008011126	90080-11126	New Genuine Part
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)

OEM	Part name	Category
04446-02050	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44302-05030	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44303-05020	Shaft Sub-Assy, W/pulley	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44304-05010	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44305-20041	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44305-20050	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44308-05010	Union, Pressure Port	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44310-05080	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44313-02110	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44313-02120	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44313-02130	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44313-02140	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44313-02150	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44325-02210	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44325-02220	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44325-02230	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44325-02240	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44325-02250	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44330-05070	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44330-05080	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44330-05090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44330-05100	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44330-05110	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44330-05120	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44337-05030	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44341-02011	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44345-02110	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44345-02120	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44345-02130	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44345-02140	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44345-02150	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44360-20160	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
44390-20020	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-10154	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-11126	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-30055	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-30056	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-30057	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-30058	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-30059	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-31063	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-50261	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
90080-52097	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Vane Pump & Reservoir (Power Steering) ([07.2000 - ] (0007- )CDT220)
