Search › Model › CDT220

CDT220

Toyota AVENSIS · 1999 · 3,894 parts · 189 categories

3,894 items

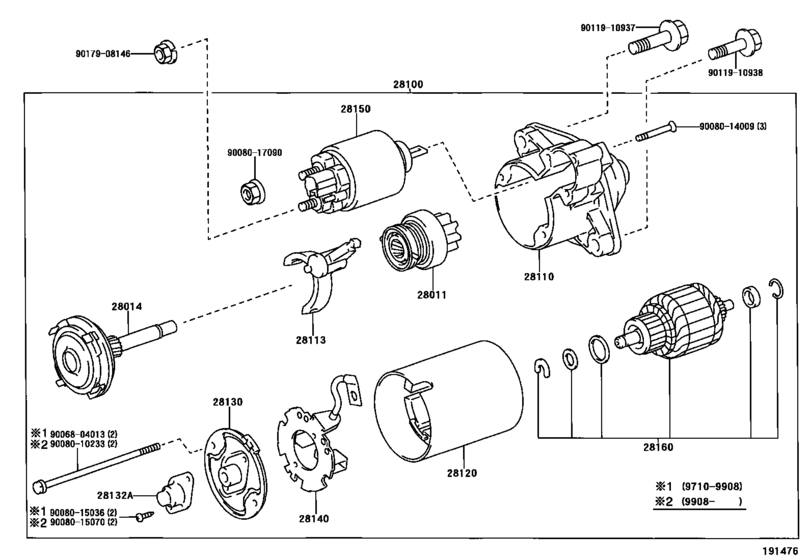

Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#) 22

#	OEM	Part name
28011	28011-0G010	Clutch Sub-Assy, Starter
28014	28014-0G010	Shaft Sub-Assy, Planet Carrier
28100	28100-0G010	Starter Assy
28110	28110-0G010	Housing Assy, Starter Drive
28113	28113-02010	Lever, Starter Pinion Drive
28120	28120-0G010	Yoke Assy, Starter
28130	28130-0B020	Frame Assy, Starter Commutator End
28132	28132-04010	Cover, Starter Commutator End Frame
28132	28132-0X040	Cover, Starter Commutator End Frame
28140	28140-0G010	Holder Assy, Starter Brush
28150	28150-0B020	Switch Assy, Magnet Starter
28160	28160-0G010	Armature Assy, Starter
9006804013	90068-04013	New Genuine Part
9008010233	90080-10233	New Genuine Part
9008014009	90080-14009	New Genuine Part
9008015036	90080-15036	New Genuine Part
9008015070	90080-15070	New Genuine Part
9008017090	90080-17090	New Genuine Part
9011910937	90119-10937	New Genuine Part
9011910938	90119-10938	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut

OEM	Part name	Category
28011-0G010	Clutch Sub-Assy, Starter	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28014-0G010	Shaft Sub-Assy, Planet Carrier	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28100-0G010	Starter Assy	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28110-0G010	Housing Assy, Starter Drive	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28113-02010	Lever, Starter Pinion Drive	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28120-0G010	Yoke Assy, Starter	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28130-0B020	Frame Assy, Starter Commutator End	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28132-04010	Cover, Starter Commutator End Frame	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28132-0X040	Cover, Starter Commutator End Frame	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28140-0G010	Holder Assy, Starter Brush	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28150-0B020	Switch Assy, Magnet Starter	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
28160-0G010	Armature Assy, Starter	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90068-04013	New Genuine Part	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90080-10233	New Genuine Part	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90080-14009	New Genuine Part	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90080-15036	New Genuine Part	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90080-15070	New Genuine Part	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90080-17090	New Genuine Part	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90119-10937	New Genuine Part	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90119-10938	New Genuine Part	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90179-08146	Nut	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
90179-08204	Nut	Starter ([10.1997 - ] 12V 2.0KW (9710- )1CDFTV,2CT#)
