CDT220

Toyota AVENSIS · 1999 · 3,894 parts · 189 categories

3,894 items

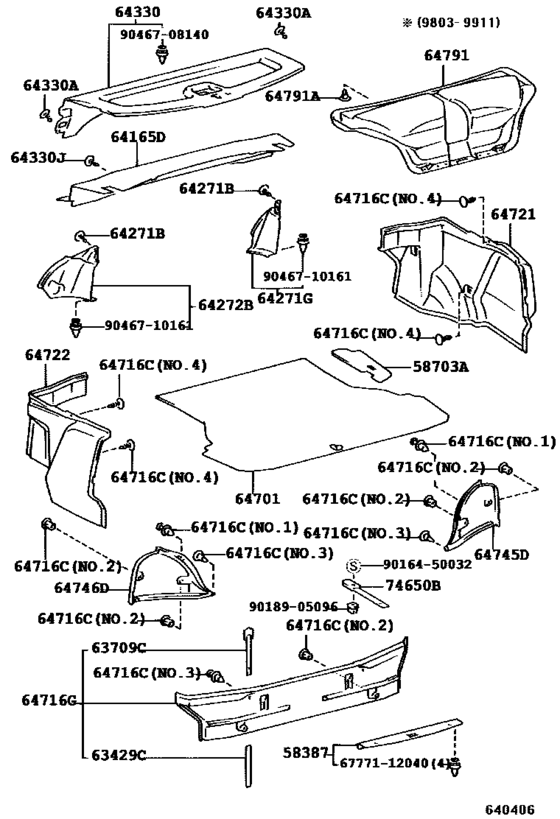

Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED) 34

#	OEM	Part name
58387	58387-05040-C0	Plate, Rear Floor Finish
58703	58773-05020	Cover Sub-Assy, Luggage Compartment Side, Rh
63429	63429-05020	Band, Room Rack
63709	63709-05020	Band Sub-Assy, Room Rack
64165	64165-05020	Cover, Upper Back Panel Hole, No.1
64271	90467-05096-22	Clip(For Rear Floor Finish Plate)
64271	64271-05030-B1	Board, Room Partition, Rh
64271	64271-05030-G0	Board, Room Partition, Rh
64272	64272-05030-B1	Board, Room Partition, Lh
64272	64272-05030-G0	Board, Room Partition, Lh
64330	64330-05080-B1	Panel Assy, Package Tray Trim
64330	64330-05080-G0	Panel Assy, Package Tray Trim
64330	90080-46235-B3	Clip(For Package Tray Trim Panel)
64330	90080-46235-G1	Clip(For Room Partition Board)
64330	90467-05021-B8	Clip, Roof Headlining
64330	90467-05021-B6	Clip(For Rear Floor Carpet)
64330	90467-05021-C0	Clip (For Center Pillar Garnish Panel, Upper)
64330	90467-05021-G1	Clip (For Center Pillar Garnish Panel, Upper)
64701	64711-05050-C0	Mat Sub-Assy, Luggage Compartment
64716	90080-46231-C1	Clip(For Luggage Compartment Trim Rear Cover)
64716	90467-08188	Clip, Radiator Support To Frame
64716	64716-05040-C0	Cover, Luggage Compartment Trim, Rear
64721	64721-05040-C0	Cover, Luggage Compartment Trim, Inner Rh
64722	64722-05030-C0	Cover, Luggage Compartment Trim, Inner Lh
64745	64745-05030-C0	Cover, Rear Combination Lamp Service, Rh
64746	64746-05030-C0	Cover, Rear Combination Lamp Service, Lh
64791	64791-05030-C0	Cover, Back Door Trim
64791	90467-06150-C0	Clip(For Luggage Compartment Floor Mat)
74650	74650-20010	Strap Assy, Assist
6777112040	67771-12040	Clip (For Quarter Inside Trim Board)
9016450032	90164-50032	Screw
9018905096	90189-05096	GROMMET, SCREW
9046708140	90467-08140	New Genuine Part
9046710161	90467-10161	Clip

OEM	Part name	Category
58387-05040-C0	Plate, Rear Floor Finish	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
58773-05020	Cover Sub-Assy, Luggage Compartment Side, Rh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
63429-05020	Band, Room Rack	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
63709-05020	Band Sub-Assy, Room Rack	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64165-05020	Cover, Upper Back Panel Hole, No.1	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64271-05030-B1	Board, Room Partition, Rh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64271-05030-G0	Board, Room Partition, Rh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64272-05030-B1	Board, Room Partition, Lh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64272-05030-G0	Board, Room Partition, Lh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64330-05080-B1	Panel Assy, Package Tray Trim	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64330-05080-G0	Panel Assy, Package Tray Trim	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64711-05050-C0	Mat Sub-Assy, Luggage Compartment	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64716-05040-C0	Cover, Luggage Compartment Trim, Rear	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64721-05040-C0	Cover, Luggage Compartment Trim, Inner Rh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64722-05030-C0	Cover, Luggage Compartment Trim, Inner Lh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64745-05030-C0	Cover, Rear Combination Lamp Service, Rh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64746-05030-C0	Cover, Rear Combination Lamp Service, Lh	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
64791-05030-C0	Cover, Back Door Trim	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
67771-12040	Clip (For Quarter Inside Trim Board)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
74650-20010	Strap Assy, Assist	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90080-46231-C1	Clip(For Luggage Compartment Trim Rear Cover)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90080-46235-B3	Clip(For Package Tray Trim Panel)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90080-46235-G1	Clip(For Room Partition Board)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90164-50032	Screw	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90189-05096	GROMMET, SCREW	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-05021-B6	Clip(For Rear Floor Carpet)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-05021-B8	Clip, Roof Headlining	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-05021-C0	Clip (For Center Pillar Garnish Panel, Upper)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-05021-G1	Clip (For Center Pillar Garnish Panel, Upper)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-05096-22	Clip(For Rear Floor Finish Plate)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-06150-C0	Clip(For Luggage Compartment Floor Mat)	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-08140	New Genuine Part	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-08188	Clip, Radiator Support To Frame	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
90467-10161	Clip	Package Tray Panel & Luggage Compartment Mat ([10.1997 - ] (9710- )SED)
