CDT220

Toyota AVENSIS · 1999 · 3,894 parts · 189 categories

3,894 items

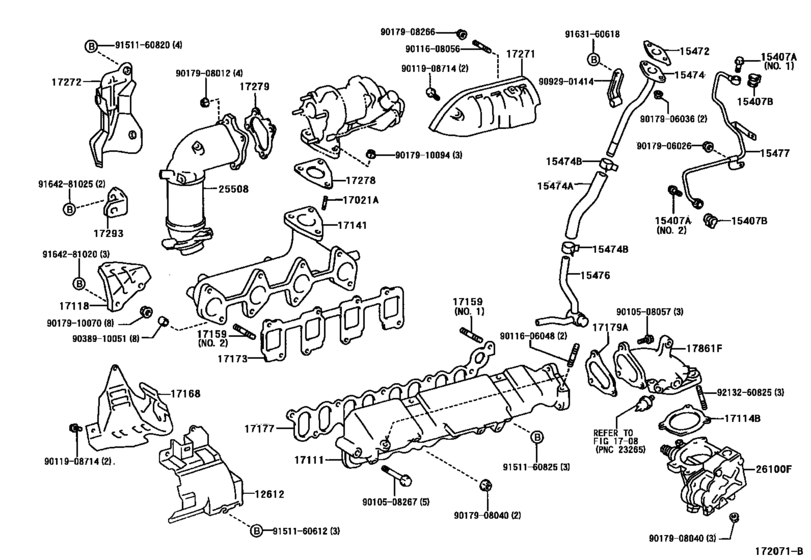

Manifold ([08.1999 - ] (9908- )1CDFTV) 74

#	OEM	Part name
12612	12612-27010	Cover, Engine, No.2
15407	90401-10061	Bolt, Union(For Turbo Oil Inlet Pipe) - UNION, NO.2
15407	90401-10063	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90904-30011	Gasket(For Turbo Oil Inlet Pipe)
15472	15472-27010	Gasket, Turbo Oil Outlet, No.1
15474	15474-27010	Pipe, Turbo Oil Outlet
15474	15491-27010	Hose, Turbo Oil Outlet
15474	90467-20005	Clip(For Ventilation Hose No.2)
15474	96134-41900	Clip Or Clamp(For Ventilation Hose)
15476	15476-27010	Pipe, Turbo Oil Outlet, No.2
15477	15477-27011	Pipe, Turbo Oil Inlet
17021	90116-10148	Bolt, Stud(For Turbocharger)
17021	17021-27010	Housing Sub-Assy, Bearing
17024	17024-27010	Housing Sub-Assy, Compressor
17111	17111-27010	Manifold, Intake
17111	17111-27012	Manifold, Intake
17111	22815-27011	Insulator, Injection Pump
17111	17111-27011	Manifold, Intake
17114	26171-27010	Gasket, Intake Flange
17118	17118-27010	Stay, Manifold
17141	17141-27020	Manifold, Exhaust
17159	90126-10024	Bolt, Stud(For Manifold To Cylinder Head)
17159	92132-60820	Bolt, Stud(For Intake Manifold To Cylinder Head)
17168	17168-27010	Insulator, Exhaust Manifold Heat, No.2
17173	17173-27010	Gasket, Exhaust Manifold To Head
17177	17177-27010	Gasket, Intake Manifold To Head, No.1
17179	17179-27010	Gasket, Intake Manifold, No.2
17201	17201-27010	Turbocharger Sub-Assy
17229	17229-27010	Band, V
17230	17230-29015	Actuator Assy, W/bracket
17246	17246-27010	Plate, Compressor Housing Clamp
17271	17271-27010	Insulator, Turbo, No.1
17272	17202-27010	Insulator, Turbo, No.2
17278	17278-27010	Gasket, Turbo To Exhaust Manifold
17279	17279-27010	Gasket, Turbine Outlet Elbow
17293	17293-27010	Stay, Turbocharger
17294	90445-09035	Hose, Actuator
17294	90466-07001	Clip(For Actuator Hose)
17861	17861-27011	Connector, Intake Air
25508	25051-27010	Converter Sub-Assy, Manifold
26100	26100-27010	Shutter Assy, Intake
26100	26100-27020	Shutter Assy, Intake
9010505058	90105-05058	New Genuine Part
9010508057	90105-08057	Bolt, W/washer(For Transmission Case Cover)
9010508267	90105-08267	BOLT WASHER BASED
9011606048	90116-06048	Bolt, Stud(For Oil Pan)
9011608056	90116-08056	Bolt, Stud(For Manifold Stay)
9011908714	90119-08714	New Genuine Part
9011908714	91621-40812	BOLT
9014860052	90148-60052	New Genuine Part
9017906026	90179-06026	Nut, Cap(For Cylinder Head Cover)
9017906026	90179-06274	Nut
9017906036	90179-06036	Nut, Cap(For Cylinder Head Cover)
9017906036	90179-06299	Nut, Wire Adjusting, No.1
9017908012	90179-08012	NUT
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908266	90179-08266	New Genuine Part
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9017910094	90179-10094	NUT
9038910051	90389-10051	New Genuine Part
9052306008	90523-06008	New Genuine Part
9092901414	90929-01414	New Genuine Part
9151160612	91511-60612	BOLT
9151160820	91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160820	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9163160618	91631-60618	BOLT WWASHER
9163160618	91631-B0618	BOLT WWASHER
9164281020	91642-81020	New Genuine Part
9164281020	91642-K1020	BOLT WWASHER
9164281025	91642-81025	BOLT WWASHER
9213260825	92132-60825	Bolt, Stud(For Manifold To Cylinder Head)

OEM	Part name	Category
12612-27010	Cover, Engine, No.2	Manifold ([08.1999 - ] (9908- )1CDFTV)
15472-27010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.1999 - ] (9908- )1CDFTV)
15474-27010	Pipe, Turbo Oil Outlet	Manifold ([08.1999 - ] (9908- )1CDFTV)
15476-27010	Pipe, Turbo Oil Outlet, No.2	Manifold ([08.1999 - ] (9908- )1CDFTV)
15477-27011	Pipe, Turbo Oil Inlet	Manifold ([08.1999 - ] (9908- )1CDFTV)
15491-27010	Hose, Turbo Oil Outlet	Manifold ([08.1999 - ] (9908- )1CDFTV)
17021-27010	Housing Sub-Assy, Bearing	Manifold ([08.1999 - ] (9908- )1CDFTV)
17024-27010	Housing Sub-Assy, Compressor	Manifold ([08.1999 - ] (9908- )1CDFTV)
17111-27010	Manifold, Intake	Manifold ([08.1999 - ] (9908- )1CDFTV)
17111-27011	Manifold, Intake	Manifold ([08.1999 - ] (9908- )1CDFTV)
17111-27012	Manifold, Intake	Manifold ([08.1999 - ] (9908- )1CDFTV)
17118-27010	Stay, Manifold	Manifold ([08.1999 - ] (9908- )1CDFTV)
17141-27020	Manifold, Exhaust	Manifold ([08.1999 - ] (9908- )1CDFTV)
17168-27010	Insulator, Exhaust Manifold Heat, No.2	Manifold ([08.1999 - ] (9908- )1CDFTV)
17173-27010	Gasket, Exhaust Manifold To Head	Manifold ([08.1999 - ] (9908- )1CDFTV)
17177-27010	Gasket, Intake Manifold To Head, No.1	Manifold ([08.1999 - ] (9908- )1CDFTV)
17179-27010	Gasket, Intake Manifold, No.2	Manifold ([08.1999 - ] (9908- )1CDFTV)
17201-27010	Turbocharger Sub-Assy	Manifold ([08.1999 - ] (9908- )1CDFTV)
17202-27010	Insulator, Turbo, No.2	Manifold ([08.1999 - ] (9908- )1CDFTV)
17229-27010	Band, V	Manifold ([08.1999 - ] (9908- )1CDFTV)
17230-29015	Actuator Assy, W/bracket	Manifold ([08.1999 - ] (9908- )1CDFTV)
17246-27010	Plate, Compressor Housing Clamp	Manifold ([08.1999 - ] (9908- )1CDFTV)
17271-27010	Insulator, Turbo, No.1	Manifold ([08.1999 - ] (9908- )1CDFTV)
17278-27010	Gasket, Turbo To Exhaust Manifold	Manifold ([08.1999 - ] (9908- )1CDFTV)
17279-27010	Gasket, Turbine Outlet Elbow	Manifold ([08.1999 - ] (9908- )1CDFTV)
17293-27010	Stay, Turbocharger	Manifold ([08.1999 - ] (9908- )1CDFTV)
17861-27011	Connector, Intake Air	Manifold ([08.1999 - ] (9908- )1CDFTV)
22815-27011	Insulator, Injection Pump	Manifold ([08.1999 - ] (9908- )1CDFTV)
25051-27010	Converter Sub-Assy, Manifold	Manifold ([08.1999 - ] (9908- )1CDFTV)
26100-27010	Shutter Assy, Intake	Manifold ([08.1999 - ] (9908- )1CDFTV)
26100-27020	Shutter Assy, Intake	Manifold ([08.1999 - ] (9908- )1CDFTV)
26171-27010	Gasket, Intake Flange	Manifold ([08.1999 - ] (9908- )1CDFTV)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.1999 - ] (9908- )1CDFTV)
90105-05058	New Genuine Part	Manifold ([08.1999 - ] (9908- )1CDFTV)
90105-08057	Bolt, W/washer(For Transmission Case Cover)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90105-08267	BOLT WASHER BASED	Manifold ([08.1999 - ] (9908- )1CDFTV)
90116-06048	Bolt, Stud(For Oil Pan)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90116-08056	Bolt, Stud(For Manifold Stay)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90116-10148	Bolt, Stud(For Turbocharger)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90119-08714	New Genuine Part	Manifold ([08.1999 - ] (9908- )1CDFTV)
90126-10024	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90148-60052	New Genuine Part	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-06026	Nut, Cap(For Cylinder Head Cover)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-06036	Nut, Cap(For Cylinder Head Cover)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-06274	Nut	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-06299	Nut, Wire Adjusting, No.1	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-08012	NUT	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-08266	New Genuine Part	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.1999 - ] (9908- )1CDFTV)
90179-10094	NUT	Manifold ([08.1999 - ] (9908- )1CDFTV)
90389-10051	New Genuine Part	Manifold ([08.1999 - ] (9908- )1CDFTV)
90401-10061	Bolt, Union(For Turbo Oil Inlet Pipe) - UNION, NO.2	Manifold ([08.1999 - ] (9908- )1CDFTV)
90401-10063	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90445-09035	Hose, Actuator	Manifold ([08.1999 - ] (9908- )1CDFTV)
90466-07001	Clip(For Actuator Hose)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90467-20005	Clip(For Ventilation Hose No.2)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90523-06008	New Genuine Part	Manifold ([08.1999 - ] (9908- )1CDFTV)
90904-30011	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([08.1999 - ] (9908- )1CDFTV)
90929-01414	New Genuine Part	Manifold ([08.1999 - ] (9908- )1CDFTV)
91511-60612	BOLT	Manifold ([08.1999 - ] (9908- )1CDFTV)
91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Manifold ([08.1999 - ] (9908- )1CDFTV)
91511-60825	Bolt (For Transfer Stiffener Plate)	Manifold ([08.1999 - ] (9908- )1CDFTV)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Manifold ([08.1999 - ] (9908- )1CDFTV)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Manifold ([08.1999 - ] (9908- )1CDFTV)
91621-40812	BOLT	Manifold ([08.1999 - ] (9908- )1CDFTV)
91631-60618	BOLT WWASHER	Manifold ([08.1999 - ] (9908- )1CDFTV)
91631-B0618	BOLT WWASHER	Manifold ([08.1999 - ] (9908- )1CDFTV)
91642-81020	New Genuine Part	Manifold ([08.1999 - ] (9908- )1CDFTV)
91642-81025	BOLT WWASHER	Manifold ([08.1999 - ] (9908- )1CDFTV)
91642-K1020	BOLT WWASHER	Manifold ([08.1999 - ] (9908- )1CDFTV)
92132-60820	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([08.1999 - ] (9908- )1CDFTV)
92132-60825	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([08.1999 - ] (9908- )1CDFTV)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Manifold ([08.1999 - ] (9908- )1CDFTV)
