CDT220

Toyota AVENSIS · 1999 · 3,894 parts · 189 categories
CDT220 ×

← Back to categories

3,894 items

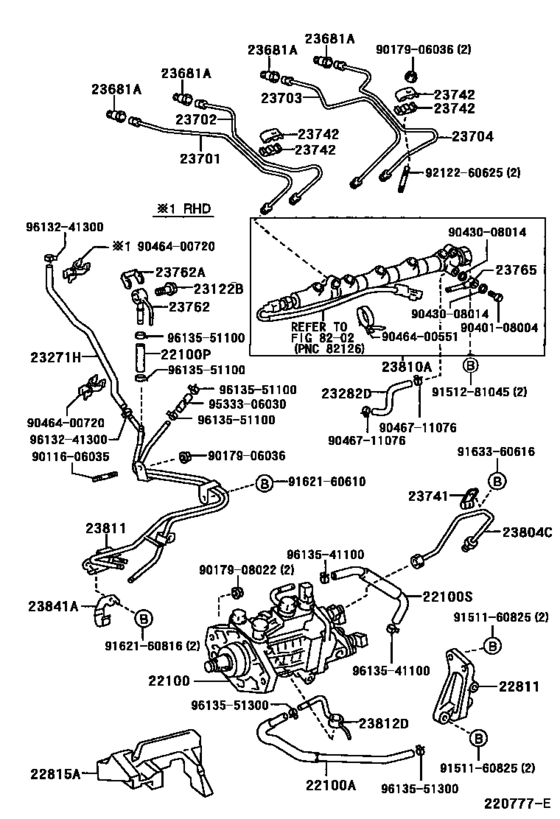

Injection Pump Assembly ([08.1999 - ] (9908- )1CDFTV) 61
#OEMPart name
22100 22100-27010 Pump Assy, Injection Or Supply
22100 23273-27010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
22100 95337-06020 Hose, Differential Pressure Control
22100 23274-27010 Hose, Fuel(For Injection Pump To Fuel Pipe)
22811 22811-27010 Stay, Injection Pump, No.1
22815 22815-27010 Insulator, Injection Pump
22815 22815-27011 Insulator, Injection Pump
23122 23122-27010 Valve, Check
23122 23769-30010 Valve, Check
23271 23271-27020 Hose, Fuel, No.1
23282 23282-27010 Hose, Fuel - FUEL, NO.4
23282 95333-04020 Hose, Lpg Injector
23282 90445-11152 Hose, Fuel, No.4
23681 23681-17010 Seal, Nozzle Holder
23701 23701-27010 Pipe Sub-Assy, Injection, No.1
23701 23701-27011 Pipe Sub-Assy, Injection, No.1
23702 23702-27010 Pipe Sub-Assy, Injection, No.2
23702 23702-27011 Pipe Sub-Assy, Injection, No.2
23703 23703-27010 Pipe Sub-Assy, Injection, No.3
23703 23703-27011 Pipe Sub-Assy, Injection, No.3
23704 23704-27010 Pipe Sub-Assy, Injection, No.4
23704 23704-27011 Pipe Sub-Assy, Injection, No.4
23741 23741-27010 Clamp, Injection Pipe, No.1
23742 23742-27010 Clamp, Injection Pipe, No.2
23762 23762-27010 Pipe, Nozzle Leakage, No.2
23762 90904-30012 Gasket, Nozzle Leakage Pipe No.2
23765 23765-27010 Pipe, Nozzle Leakage, No.5
23804 23804-27010 Pipe Sub-Assy, Fuel Inlet
23804 23804-27011 Pipe Sub-Assy, Fuel Inlet
23810 23810-27011 Rail Assy, Common
23810 23810-27021 Rail Assy, Common
23811 23811-27010 Pipe, Fuel(For Fuel Filter To Injection Pump)
23812 23812-27010 Pipe, Fuel, No.2
23841 23841-27010 Clamp, Fuel Pipe, No.1(For Injection Pump)
9011606035 90116-06035 Bolt, Stud(For Timing Gear Cover)
9017906036 90179-06036 Nut, Cap(For Cylinder Head Cover)
9017906036 90179-06299 Nut, Wire Adjusting, No.1
9017908022 90179-08022 NUT
9040108004 90401-08004 Bolt Union(For Oil Jet)
9043008014 90430-08014 Gasket(For Oil Filter Outlet Pipe)
9046400551 90464-00551 New Genuine Part
9046400720 90464-00720 New Genuine Part
9046711076 90467-11076 Clamp Or Clip(For Air Hose, No.5)
9151160825 91511-60825 Bolt (For Transfer Stiffener Plate)
9151160825 91511-B0825 Bolt (For Transfer Stiffener Plate)
9151281045 91512-81045 New Genuine Part
9162160610 91621-60610 New Genuine Part
9162160610 91651-B0612 Bolt
9162160816 91621-60816 New Genuine Part
9162160816 91621-B0816 BOLT WWASHER
9163360616 91633-60616 New Genuine Part
9163360616 91631-B0616 BOLT WWASHER
9212260625 92122-60625 New Genuine Part
9533306030 95333-06030 Hose, Fuel
9533306030 95338-06030 HOSE, FUEL
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
9613241300 96132-51300 Clip(For Ventilation Hose No.2)
9613541100 96135-41100 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9613541100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9613551300 96135-51300 Clamp, Hose
