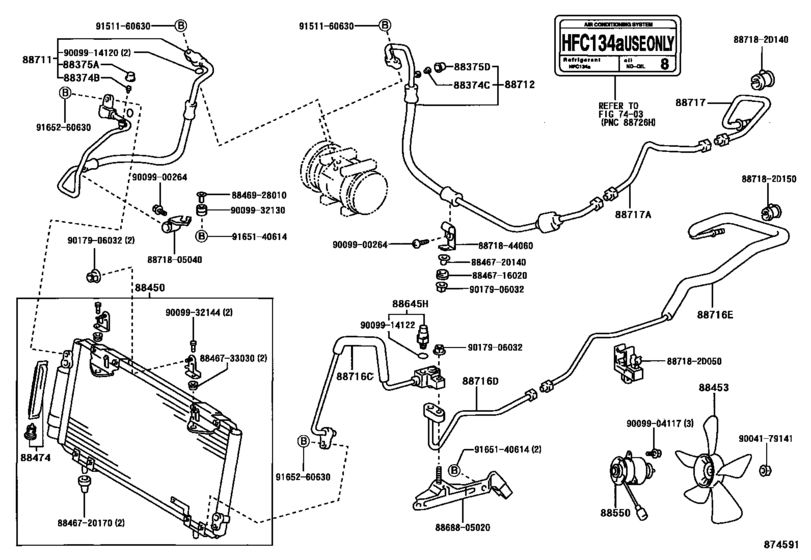

| 16361-27010 |
Fan, Cooling (For Condenser) |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 16363-27010 |
Motor Assy, Blower (For Condenser) |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88374-30010 |
Valve, Service, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88375-30280 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88375-30290 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88450-05080 |
Condenser Assy, W/receiver |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88467-16020 |
Cushion, Cooler Condenser, No.2 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88467-20140 |
Cushion, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88467-20170 |
Cushion, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88467-33030 |
Cushion, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88469-28010 |
Collar, Condenser Bracket, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88474-47010 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88645-60030 |
Switch, Pressure No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88688-05020 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88711-05080 |
Hose, Cooler Refrigerant Discharge, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88712-05140 |
Hose, Cooler Refrigerant Suction, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88712-05150 |
Hose, Cooler Refrigerant Suction, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88716-05080 |
Pipe, Cooler Refrigerant Liquid, E |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88716-05180 |
Pipe, Cooler Refrigerant Liquid, D |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88716-05190 |
Pipe, Cooler Refrigerant Liquid, E |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88716-05290 |
Pipe, Cooler Refrigerant Liquid, C |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88717-05130 |
Pipe, Cooler Refrigerant Suction, No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88717-05170 |
Pipe, Cooler Refrigerant Suction, A |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88718-05040 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88718-2D050 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88718-2D140 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88718-2D150 |
Clamp(For Cooler Refrigerant Pipe), No.1 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 88718-44060 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90041-79141 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90099-00264 |
SCREW |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90099-04117 |
Bolt, Radiator Side Support Plate |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90099-14122 |
O-RING |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90099-32130 |
Grommet (For Power Take-Off Cable Bracket) |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90099-32144 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90179-06032 |
Direct |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 90179-06274 |
Nut |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 91511-60630 |
BOLT |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 91651-40614 |
Bolt |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
| 91652-60630 |
New Genuine Part |
Heating & Air Conditioning - Cooler Piping ([07.2000 - ] DEALER OPTION (0007- )CDT220..RHD) |
