Search › Model › CDT220

CDT220

Toyota AVENSIS · 1999 · 3,894 parts · 189 categories

3,894 items

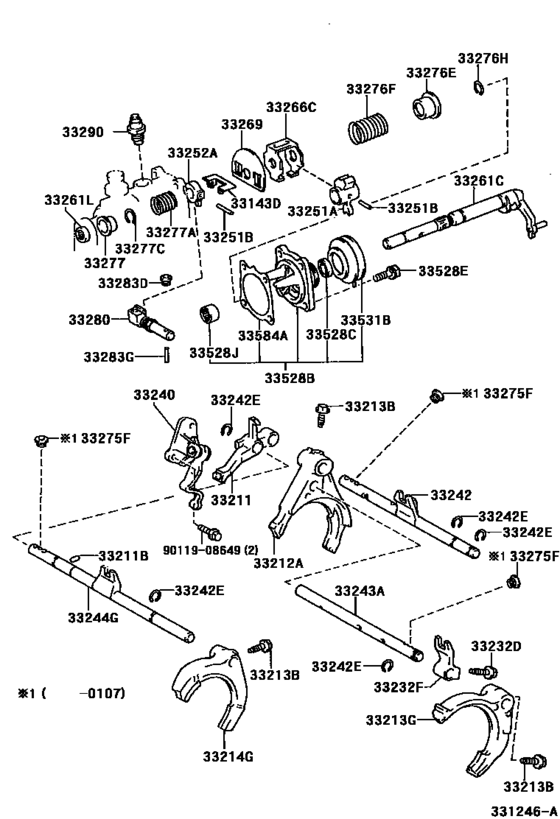

Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220) 42

#	OEM	Part name
33143	33143-12020	Baffle, Transmission Oil
33211	33211-20020	Fork, Reverse Shift
33211	90361-08005	Roller(For Reverse Shift Fork)
33212	33212-12030	Fork, Gear Shift, No.1
33213	90105-07002	Bolt(For Shift Fork Set)
33213	33220-28020	Fork, Gear Shift, No.2
33214	33214-12020	Fork, Gear Shift, No.3
33232	33232-12030	Head, Gear Shift, No.1
33240	33240-28010	Bracket Assy, Reverse Shift Arm
33242	33242-28030	Shaft, Gear Shift Fork, No.1
33242	90520-13002	Ring, Shaft Snap (For Shift Fork Shaft)
33243	33243-28040	Shaft, Gear Shift Fork, No.2
33244	33244-28030	Shaft, Gear Shift Fork, No.3
33251	33251-28040	Lever, Shift, Inner No.1
33251	90254-05007	Pin, Slotted Spring (For Shift Inner Lever)
33251	90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)
33252	33252-20020	Lever, Shift, Inner No.2
33261	33261-20071	Shaft, Shift & Select Lever
33261	90384-15002	Bush, Bimetal Formed(For Outer Select Lever)
33266	33266-28010	Plate, Shift Inter Lock
33266	33266-28011	Plate, Shift Inter Lock
33269	33269-12010	Cover, Shift Inter Lock Plate
33275	90341-12004	Plug, Oil Pan(For Oil Cooler)
33276	33276-20020	Seat, Select Spring, No.1
33276	90501-16134	Spring, Compression, No.1 (For Select Return)
33276	90520-15003	Ring, Shaft Snap (For Select Spring No.1 Seat)
33277	33277-17010	Seat, Select Spring, No.2
33277	90501-17028	Spring, Compression, No.2 (For Select Return)
33277	90520-12003	Ring(For Reverse Shift Head)
33280	33280-20041	Pin Assy, Reverse Restrict
33283	90341-10065	Plug, Straight, No.1
33283	90254-05003	Pin, Slotted Spring(For Shift Fork Set)
33290	33290-28010	Ball Assy, Lock, No.1
33290	33290-33020	Ball Assy, Lock, No.1
33528	33506-28210	Cover, Control Shaft
33528	90311-18013	Seal, Oil (For Control Shaft Cover)
33528	90119-10288	Bolt (For Control Shaft Cover)
33528	90384-18017	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33531	33531-12020	Boot, Dust (For Shift & Select Lever Shaft)
33584	33584-20020	Gasket, Control Shift Lever Retainer
9011908649	90119-08649	Bolt(For Intake Manifold To Exhaust Manifold)
9011908649	91611-60822	Bolt

OEM	Part name	Category
33143-12020	Baffle, Transmission Oil	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33211-20020	Fork, Reverse Shift	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33212-12030	Fork, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33214-12020	Fork, Gear Shift, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33220-28020	Fork, Gear Shift, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33232-12030	Head, Gear Shift, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33240-28010	Bracket Assy, Reverse Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33242-28030	Shaft, Gear Shift Fork, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33243-28040	Shaft, Gear Shift Fork, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33244-28030	Shaft, Gear Shift Fork, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33251-28040	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33252-20020	Lever, Shift, Inner No.2	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33261-20071	Shaft, Shift & Select Lever	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33266-28010	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33266-28011	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33269-12010	Cover, Shift Inter Lock Plate	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33276-20020	Seat, Select Spring, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33277-17010	Seat, Select Spring, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33280-20041	Pin Assy, Reverse Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33290-28010	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33290-33020	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33506-28210	Cover, Control Shaft	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33531-12020	Boot, Dust (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
33584-20020	Gasket, Control Shift Lever Retainer	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90105-07002	Bolt(For Shift Fork Set)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90119-08649	Bolt(For Intake Manifold To Exhaust Manifold)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90119-10288	Bolt (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90254-05003	Pin, Slotted Spring(For Shift Fork Set)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90254-05007	Pin, Slotted Spring (For Shift Inner Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90254-05016	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90311-18013	Seal, Oil (For Control Shaft Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90341-10065	Plug, Straight, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90341-12004	Plug, Oil Pan(For Oil Cooler)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90361-08005	Roller(For Reverse Shift Fork)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90384-15002	Bush, Bimetal Formed(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90384-18017	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90501-16134	Spring, Compression, No.1 (For Select Return)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90501-17028	Spring, Compression, No.2 (For Select Return)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90520-12003	Ring(For Reverse Shift Head)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90520-13002	Ring, Shaft Snap (For Shift Fork Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
90520-15003	Ring, Shaft Snap (For Select Spring No.1 Seat)	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
91611-60822	Bolt	Gear Shift Fork & Lever Shaft (Mtm) ([12.1999 - ] E251,E351 (9912- )CDT220)
