Search › Model › CDT220

CDT220

Toyota AVENSIS · 1999 · 3,894 parts · 189 categories

3,894 items

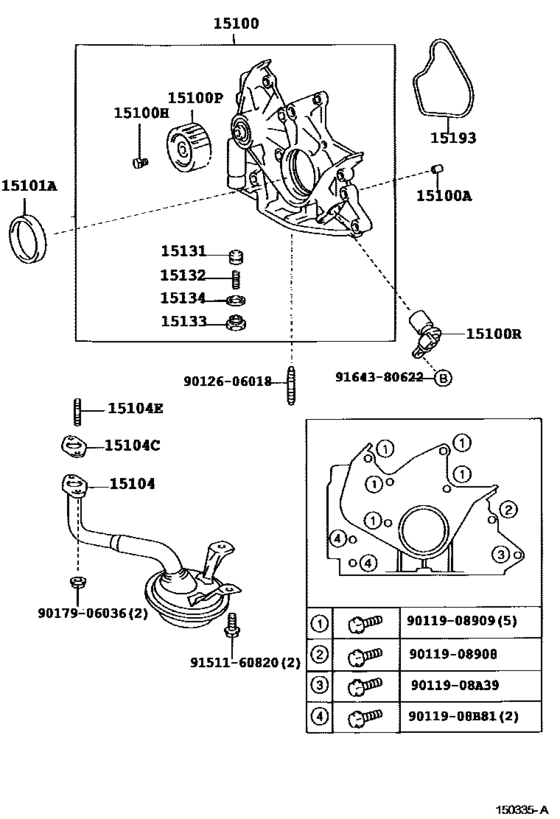

Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV) 24

#	OEM	Part name
15100	15100-27010	Pump Assy, Oil
15100	90253-11021	Pin, Ring
15100	15189-55010	Bolt, Seal
15100	13524-64020	Pulley, Oil Pump Drive Shaft
15100	90919-05042	Sensor, Crank Position
15101	90311-45017	Seal(For Crankshaft)
15104	15104-27040	Strainer Sub-Assy, Oil
15104	15149-64070	Gasket(For Oil Strainer)
15104	90116-06132	Bolt, Stud(For Oil Strainer)
15131	15131-64041	Valve, Oil Pump Relief
15132	15132-17010	Spring, Oil Pump Relief Valve
15133	15133-64041	Plug, Oil Pump Relief Valve
15134	15134-67020	Gasket, Oil Pump Relief Valve
15193	15193-64022	Gasket, Oil Pump
9011908	90119-08A39	BOLT WWASHER
9011908	90119-08B81	New Genuine Part
9011908908	90119-08908	BOLT WWASHER
9011908909	90119-08909	New Genuine Part
9012606018	90126-06018	Bolt, Stud(For Engine Rear Oil Seal Retainer)
9017906036	90179-06036	Nut, Cap(For Cylinder Head Cover)
9017906036	90179-06299	Nut, Wire Adjusting, No.1
9151160820	91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160820	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9164380622	91643-80622	New Genuine Part

OEM	Part name	Category
13524-64020	Pulley, Oil Pump Drive Shaft	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15100-27010	Pump Assy, Oil	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15104-27040	Strainer Sub-Assy, Oil	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15131-64041	Valve, Oil Pump Relief	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15132-17010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15133-64041	Plug, Oil Pump Relief Valve	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15134-67020	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15149-64070	Gasket(For Oil Strainer)	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15189-55010	Bolt, Seal	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
15193-64022	Gasket, Oil Pump	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90116-06132	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90119-08908	BOLT WWASHER	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90119-08909	New Genuine Part	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90119-08A39	BOLT WWASHER	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90119-08B81	New Genuine Part	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90126-06018	Bolt, Stud(For Engine Rear Oil Seal Retainer)	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90179-06036	Nut, Cap(For Cylinder Head Cover)	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90179-06299	Nut, Wire Adjusting, No.1	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90253-11021	Pin, Ring	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90311-45017	Seal(For Crankshaft)	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
90919-05042	Sensor, Crank Position	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
91643-80622	New Genuine Part	Engine Oil Pump ([08.1999 - ] (9908- )1CDFTV)
