CDT220

Toyota AVENSIS · 1999 · 3,894 parts · 189 categories

3,894 items

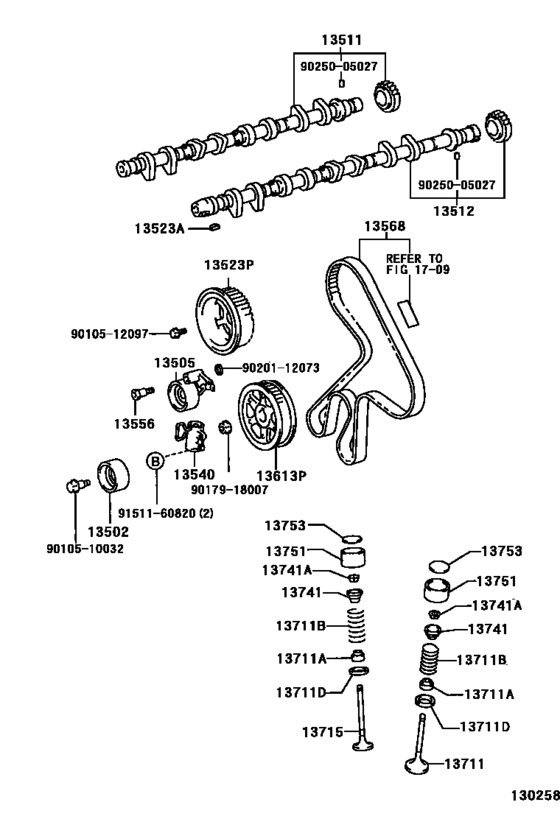

Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV) 43

#	OEM	Part name
13502	13503-27010	Idler Sub-Assy, Timing Belt, No.2
13505	13505-27010	Idler Sub-Assy, Timing Belt, No.1
13511	13501-27011	Camshaft
13512	13502-27011	Camshaft, No.2
13523	90280-05004	Key, Woodruff(For Timing Gear)
13523	13523-27010	Pulley, Camshaft Timing
13540	13540-27010	Tensioner Assy, Chain, No.1
13540	13540-27011	Tensioner Assy, Chain, No.1
13556	13556-27010	Shaft, Timing Belt Idler
13568	13568-29035	Belt, Timing
13613	13603-27010	Pulley, Injection Pump Drive
13711	13711-27010	Valve, Intake
13711	90913-02119	Seal Or Ring, O(For Valve Stem Oil)
13711	90905-01055	Spring, Compression(For Inner)
13711	90560-11032	Washer, Plate(For Valve Spring Seat)
13715	13715-27010	Valve, Exhaust
13741	13741-16010	Retainer, Valve Spring
13741	90913-03021	Seal Or Ring, O(For Valve Stem Oil)
13751	13751-16010	Lifter, Valve
13753	13753-27010	Shim, Valve Adjusting
13753	13753-27030	Shim, Valve Adjusting
13753	13753-27050	Shim, Valve Adjusting
13753	13753-27070	Shim, Valve Adjusting
13753	13753-27090	Shim, Valve Adjusting
13753	13753-27110	Shim, Valve Adjusting
13753	13753-27130	Shim, Valve Adjusting
13753	13753-27150	Shim, Valve Adjusting
13753	13753-27170	Shim, Valve Adjusting
13753	13753-27190	Shim, Valve Adjusting
13753	13753-27210	Shim, Valve Adjusting
13753	13753-27230	Shim, Valve Adjusting
13753	13753-27250	Shim, Valve Adjusting
13753	13753-27270	Shim, Valve Adjusting
13753	13753-27290	Shim, Valve Adjusting
13753	13753-27310	Shim, Valve Adjusting
13753	13753-27330	Shim, Valve Adjusting
9010510032	90105-10032	BOLT
9010512097	90105-12097	New Genuine Part
9017918007	90179-18007	NUT
9020112073	90201-12073	WASHER PLATE
9025005027	90250-05027	Pin, Straight
9151160820	91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160820	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)

OEM	Part name	Category
13501-27011	Camshaft	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13502-27011	Camshaft, No.2	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13503-27010	Idler Sub-Assy, Timing Belt, No.2	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13505-27010	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13523-27010	Pulley, Camshaft Timing	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13540-27010	Tensioner Assy, Chain, No.1	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13540-27011	Tensioner Assy, Chain, No.1	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13556-27010	Shaft, Timing Belt Idler	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13568-29035	Belt, Timing	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13603-27010	Pulley, Injection Pump Drive	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13711-27010	Valve, Intake	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13715-27010	Valve, Exhaust	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13741-16010	Retainer, Valve Spring	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13751-16010	Lifter, Valve	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27010	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27030	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27050	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27070	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27090	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27110	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27130	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27150	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27170	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27190	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27210	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27230	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27250	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27270	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27290	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27310	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
13753-27330	Shim, Valve Adjusting	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90105-10032	BOLT	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90105-12097	New Genuine Part	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90179-18007	NUT	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90201-12073	WASHER PLATE	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90250-05027	Pin, Straight	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90280-05004	Key, Woodruff(For Timing Gear)	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90560-11032	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90905-01055	Spring, Compression(For Inner)	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90913-02119	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
90913-03021	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Camshaft & Valve ([08.1999 - ] (9908- )1CDFTV)
