Search › Model › CB1V
CB1V

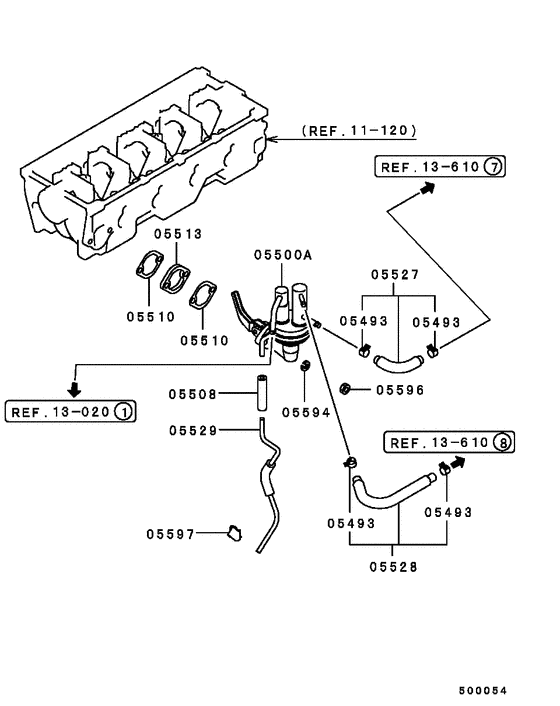

Fuel Pump 13
| # | OEM | Part name |
|---|---|---|
| 5493 | MS660236 | CLIP - D=11 |
| 5500 | MD180929 | FUEL PUMP ASSY |
| 5508 | MS642596 | HOSE, FUEL TANK - 6x2000 |
| 5510 | MD190927 | GASKET, FUEL PUMP HOLE COVER |
| 5510 | MD302639 | GASKET, FUEL PUMP HOLE COVER |
| 5513 | MD119633 | INSULATOR, FUEL PUMP MOUNTING |
| 5527 | MD125856 | HOSE KIT, FUEL PUMP FUEL RETURN |
| 5527 | MD312831 | HOSE KIT, FUEL PUMP FUEL RETURN |
| 5528 | MD181966 | HOSE KIT, FUEL PUMP FUEL RETURN - 5.6x210 |
| 5529 | MD154368 | TUBE, FUEL PUMP BREATHER |
| 5594 | MF450405 | WASHER, CYLINDER HEAD - Spring,8 |
| 5596 | MF430005 | NUT, ROCKER COVER - 8 |
| 5597 | MD109230 | CLAMP, FUEL PUMP |
| OEM | Part name | Category |
|---|---|---|
| MD109230 | CLAMP, FUEL PUMP | Fuel Pump |
| MD119633 | INSULATOR, FUEL PUMP MOUNTING | Fuel Pump |
| MD125856 | HOSE KIT, FUEL PUMP FUEL RETURN | Fuel Pump |
| MD154368 | TUBE, FUEL PUMP BREATHER | Fuel Pump |
| MD180929 | FUEL PUMP ASSY | Fuel Pump |
| MD181966 | HOSE KIT, FUEL PUMP FUEL RETURN - 5.6x210 | Fuel Pump |
| MD190927 | GASKET, FUEL PUMP HOLE COVER | Fuel Pump |
| MD302639 | GASKET, FUEL PUMP HOLE COVER | Fuel Pump |
| MD312831 | HOSE KIT, FUEL PUMP FUEL RETURN | Fuel Pump |
| MF430005 | NUT, ROCKER COVER - 8 | Fuel Pump |
| MF450405 | WASHER, CYLINDER HEAD - Spring,8 | Fuel Pump |
| MS642596 | HOSE, FUEL TANK - 6x2000 | Fuel Pump |
| MS660236 | CLIP - D=11 | Fuel Pump |
