Search › Model › CB1V

CB1V

Mitsubishi LIBERO · 1992 · 3,078 parts · 198 categories

3,078 items

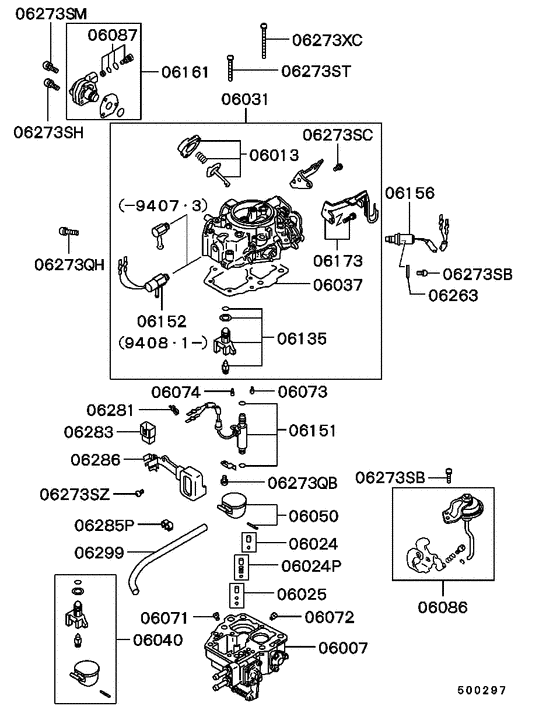

Carburetor (ALL (INNER PARTS UPPER)) 43

#	OEM	Part name
6007	MD617781	BODY, CARB MIXING
6007	MD626374	BODY, CARB MIXING
6013	MD617860	BREAKER KIT, CARB CHOKE
6024	MD612419	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6024	MD626368	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6025	MD626155	CHECK VALVE KIT, CARB ACCEL PUMP INLET
6031	MD617855	COVER KIT, CARB FLOAT CHAMBER
6031	MD626123	COVER KIT, CARB FLOAT CHAMBER
6031	MD626365	COVER KIT, CARB FLOAT CHAMBER
6037	MD617511	GASKET, CARB FLOAT CHAMBER COVER
6040	MD612453	FLOAT & NEEDLE VALVE KIT, CARB
6040	MD626373	FLOAT & NEEDLE VALVE KIT, CARB
6050	MD612213	FLOAT & PIN KIT, CARB
6050	MD626275	FLOAT & PIN KIT, CARB
6071	MD617503	JET, CARB MAIN PRIMARY - #85
6071	MD617996	JET, CARB MAIN PRIMARY - #86.3
6072	MD606196	JET, CARB MAIN - #150
6073	MD617654	JET, CARB PILOT PRIMARY - #46.3
6074	MD606975	JET, CARB ENRICHMENT - #75
6086	MD617780	OPENER KIT, CARB THROTTLE
6135	MD612417	NEEDLE VALVE KIT, CARB FLOAT
6135	MD626370	NEEDLE VALVE KIT, CARB FLOAT
6151	MD617783	VALVE, CARB FEED BACK SOLENOID
6152	MD626154	VALVE, CARB FUEL CUT-OFF SOLENOID
6156	MD612434	VALVE, CARB SLOW CUT SOLENOID
6156	MD626001	VALVE, CARB SLOW CUT SOLENOID
6173	MD617861	BRACKET, CARB WATER HOSE
6263	MD612427	PLATE, CARB INR
6273	MF200024	SCREW, FUEL TANK - Machine,4x6
6273	MF200025	SCREW, ROCKER COVER - Machine,4x8
6273	MF200050	SCREW, FUEL TANK - Machine,5x10
6273	MF200051	SCREW, ROCKER COVER - Machine,5x12
6273	MF350061	SCREW, CARB INR
6273	MF200049	SCREW, FR AXLE - Machine,5x8
6273	MD606948	SCREW, CARB INR
6281	MD608632	CLIP, CARB INR
6281	MD626375	CLIP, CARB INR
6283	MD612435	CONNECTOR, CARB INR
6283	MD612556	CONNECTOR, CARB INR
6285	MD001843	CLAMP, CARB INR
6286	MD617513	BRACKET, CARB INR
6286	MD617624	BRACKET, CARB INR
6299	MD617777	HOSE, CARB INR - 1000

OEM	Part name	Category
MD001843	CLAMP, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MD606196	JET, CARB MAIN - #150	Carburetor (ALL (INNER PARTS UPPER))
MD606948	SCREW, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MD606975	JET, CARB ENRICHMENT - #75	Carburetor (ALL (INNER PARTS UPPER))
MD608632	CLIP, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MD612213	FLOAT & PIN KIT, CARB	Carburetor (ALL (INNER PARTS UPPER))
MD612417	NEEDLE VALVE KIT, CARB FLOAT	Carburetor (ALL (INNER PARTS UPPER))
MD612419	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (ALL (INNER PARTS UPPER))
MD612427	PLATE, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MD612434	VALVE, CARB SLOW CUT SOLENOID	Carburetor (ALL (INNER PARTS UPPER))
MD612435	CONNECTOR, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MD612453	FLOAT & NEEDLE VALVE KIT, CARB	Carburetor (ALL (INNER PARTS UPPER))
MD612556	CONNECTOR, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MD617503	JET, CARB MAIN PRIMARY - #85	Carburetor (ALL (INNER PARTS UPPER))
MD617511	GASKET, CARB FLOAT CHAMBER COVER	Carburetor (ALL (INNER PARTS UPPER))
MD617513	BRACKET, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MD617624	BRACKET, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MD617654	JET, CARB PILOT PRIMARY - #46.3	Carburetor (ALL (INNER PARTS UPPER))
MD617777	HOSE, CARB INR - 1000	Carburetor (ALL (INNER PARTS UPPER))
MD617780	OPENER KIT, CARB THROTTLE	Carburetor (ALL (INNER PARTS UPPER))
MD617781	BODY, CARB MIXING	Carburetor (ALL (INNER PARTS UPPER))
MD617783	VALVE, CARB FEED BACK SOLENOID	Carburetor (ALL (INNER PARTS UPPER))
MD617855	COVER KIT, CARB FLOAT CHAMBER	Carburetor (ALL (INNER PARTS UPPER))
MD617860	BREAKER KIT, CARB CHOKE	Carburetor (ALL (INNER PARTS UPPER))
MD617861	BRACKET, CARB WATER HOSE	Carburetor (ALL (INNER PARTS UPPER))
MD617996	JET, CARB MAIN PRIMARY - #86.3	Carburetor (ALL (INNER PARTS UPPER))
MD626001	VALVE, CARB SLOW CUT SOLENOID	Carburetor (ALL (INNER PARTS UPPER))
MD626123	COVER KIT, CARB FLOAT CHAMBER	Carburetor (ALL (INNER PARTS UPPER))
MD626154	VALVE, CARB FUEL CUT-OFF SOLENOID	Carburetor (ALL (INNER PARTS UPPER))
MD626155	CHECK VALVE KIT, CARB ACCEL PUMP INLET	Carburetor (ALL (INNER PARTS UPPER))
MD626275	FLOAT & PIN KIT, CARB	Carburetor (ALL (INNER PARTS UPPER))
MD626365	COVER KIT, CARB FLOAT CHAMBER	Carburetor (ALL (INNER PARTS UPPER))
MD626368	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (ALL (INNER PARTS UPPER))
MD626370	NEEDLE VALVE KIT, CARB FLOAT	Carburetor (ALL (INNER PARTS UPPER))
MD626373	FLOAT & NEEDLE VALVE KIT, CARB	Carburetor (ALL (INNER PARTS UPPER))
MD626374	BODY, CARB MIXING	Carburetor (ALL (INNER PARTS UPPER))
MD626375	CLIP, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
MF200024	SCREW, FUEL TANK - Machine,4x6	Carburetor (ALL (INNER PARTS UPPER))
MF200025	SCREW, ROCKER COVER - Machine,4x8	Carburetor (ALL (INNER PARTS UPPER))
MF200049	SCREW, FR AXLE - Machine,5x8	Carburetor (ALL (INNER PARTS UPPER))
MF200050	SCREW, FUEL TANK - Machine,5x10	Carburetor (ALL (INNER PARTS UPPER))
MF200051	SCREW, ROCKER COVER - Machine,5x12	Carburetor (ALL (INNER PARTS UPPER))
MF350061	SCREW, CARB INR	Carburetor (ALL (INNER PARTS UPPER))
