| 04111-40206-000 |
コッタピン |

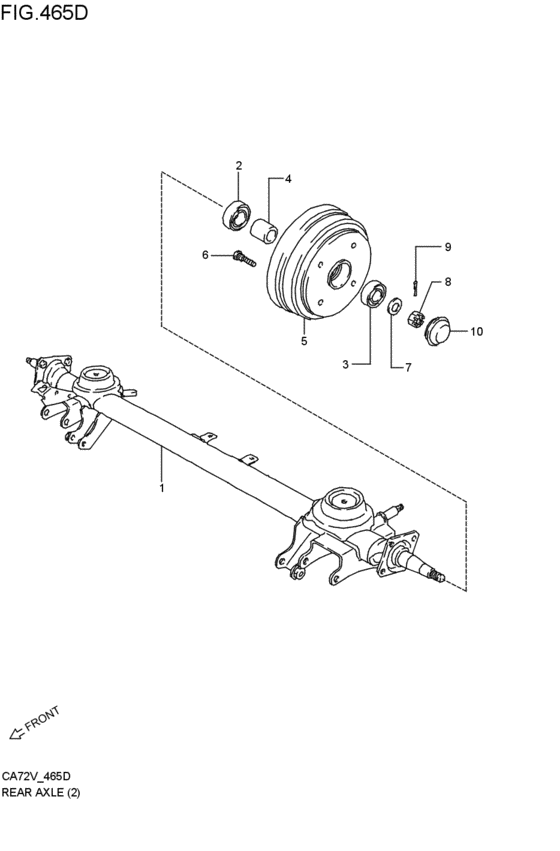

rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 04111-4020A-000 |
PIN |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 08314-4016A-000 |
NUT |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 08314-41166-000 |
Nut |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 08322-0116A-000 |
WASHER |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 08322-11166-000 |
Washer |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 09119-10049-000 |
Bolt (10x30) |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 09119-10049-XC0 |
Bolt |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 09180-21001-000 |
SPACER(20.4X32X30) |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 09262-20069-000 |
BEARING(20X47X14) |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 09262-25072-000 |
BEARING(25X52X15) - Bearing, rear swgarm |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 43241-79000-000 |
キャップ,スピンドル |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 43241-79002-000 |
CAP,SPINDLE |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 43511-60F00-000 |
DRUM,BRAKE RR |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 43511-84000-000 |
ドラム,ブレーキ,リヤ |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
| 46510-50A01-000 |
アクスル,リヤ |
rear axle (SW2,SW3,N,G,S,SX,RS,RSS,RSX; 1986-07-01~1988-07-01) |
