| 01107-06256-000 |
Bolt, fender center |

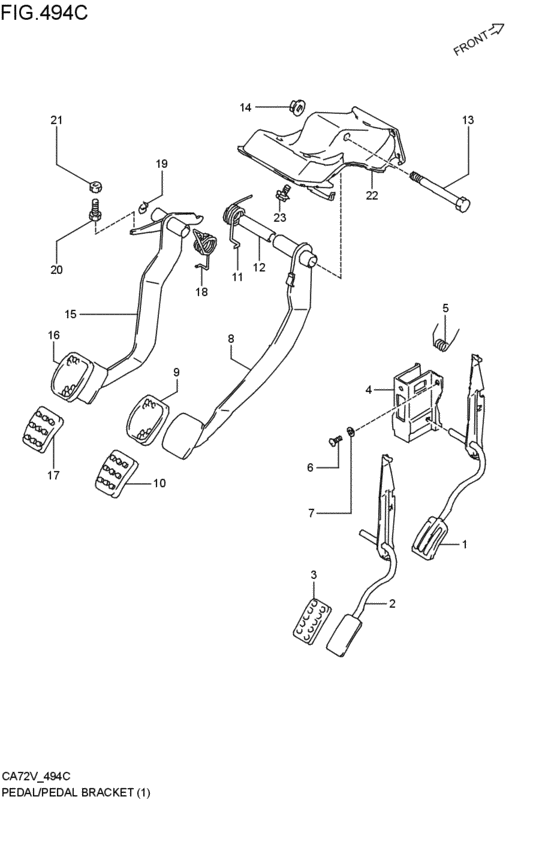

pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 01500-0625A-000 |
Bolt - Bolt, gear shift arm |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 01517-08166-000 |
Bolt 8x16 |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 01550-0816B-000 |
Bolt |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 02112-06126-000 |
Screw 6x12 |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 02112-0612A-000 |
SCREW |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 02112-0612B-000 |
SCREW - Screw, oil guide plate |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08310-0006A-000 |
NUT |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08310-11066-000 |
Nut |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08316-1010B-000 |
NUT |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08316-16106-000 |
Nut |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08321-0106A-000 |
WASHER,LOCK |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08321-21066-000 |
Lock washer |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08332-11106-000 |
E ring |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 08332-1110A-000 |
E RING |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 09100-10226-000 |
BOLT(10X85) |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 09180-10017-000 |
SPACER(10X13X66.6) |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 09444-15003-000 |
SPRING |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 09448-25017-000 |
SPRING |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 09448-25018-000 |
SPRING |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49410-54A00-000 |
ペダル,アクセレレータ |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49410-55A00-000 |
PEDAL,ACCELERATOR |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49451-54A00-281 |
パッド,アクセレレータペダル(ブラック) |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49451-54A00-5DL |
パッド,アクセレレータペダル |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49510-55A00-000 |
BRACKET,ACCELERATOR |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49511-84050-000 |
ブラケット,アクセレレータペダル |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49610-84050-000 |
PEDAL,BRAKE |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49710-84051-000 |
ブラケット,ペダル |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49710-84071-000 |
BRACKET,PEDAL |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49751-54A00-281 |
パッド,ペダル(ブラック) |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49751-54A00-5DL |
パッド,ペダル |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49751-58J00-000 |
PAD,PEDAL |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49810-84050-000 |
ペダル,クラッチ |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
| 49810-84070-000 |
PEDAL,CLUTCH |
pedal / pedal bracket (MT; 1986-07-01~1988-07-01) |
