Search › Model › CA71V

CA71V

Suzuki ALTO-A-STAR-CELERIO · 1984 · 2,381 parts · 86 categories

2,381 items

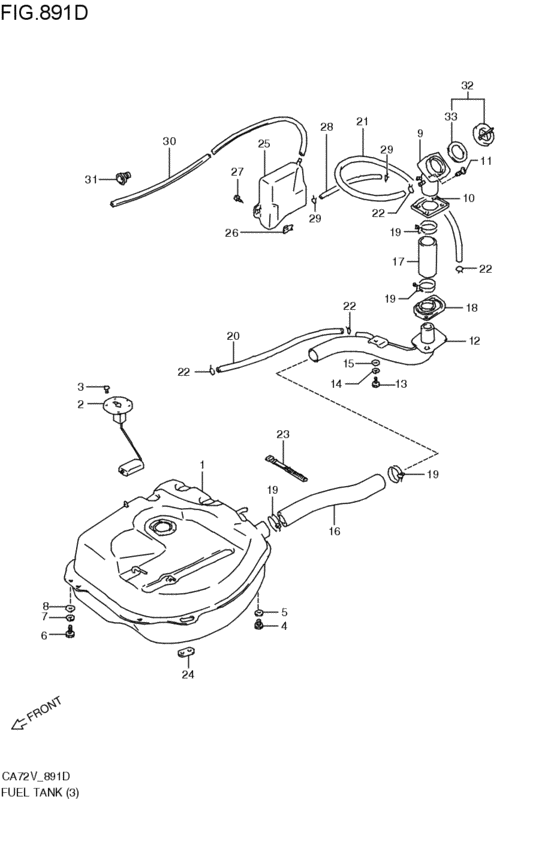

fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01) 52

#	OEM	Part name
1	89101-50A11-000	Tank assy,fuel
1	89101-50AA0-000	TANK ASSY,FUEL
2	34810-84000-000	GAUGE ASSY,FUEL LEVEL
3	02112-05086-000	Screw
3	02112-0508A-000	SCREW
4	01517-08166-000	Bolt 8x16
4	01550-0816B-000	Bolt
5	09168-08022-000	ガスケット,8X17.5X1.5
5	09168-08033-000	Gasket,8x17.5x1.5
6	01107-08206-000	Bolt
6	01500-0820A-000	Bolt
7	08321-21088-000	Lock washer
7	08321-01087-000	WASHER,LOCK - Washer, lock
8	09160-08010-000	Washer (8.2x20x1.6)
8	09160-08054-000	WASHER(8.5X20X1.6)
9	89210-81080-000	NECK,FUEL FILLER
10	89285-81001-000	PACKING,FUEL FILLER NECK SEAL
11	09125-05042-000	SCREW(5X10)
12	89230-84001-000	PIPE,FUEL FILLER INLET
13	01107-06166-000	Bolt
13	01500-0616A-000	Bolt
14	08321-21066-000	Lock washer
14	08321-0106A-000	WASHER,LOCK
15	09160-06020-000	Washer
15	09160-06066-000	WASHER(6.5X20X1.6) - Washer, throttle lever (6.5x20x1.6)
16	89241-84000-000	ホース,フューエルフィラ,ロア
16	89241-84001-000	HOSE,FUEL FILLER LWR
17	89242-84000-000	HOSE,FUEL FILLER UPR
18	89282-84000-000	SEAL,FUEL INLET PIPE
19	09400-52311-000	Сlamp
19	09400-52312-000	CLAMP
20	09343-11024-000	ホース,11X15X710
20	09352-11153-00B	HOSE(11X15X2000) - Hose, breather
20	09352-11154-00B	Hose(11X15X2000)
22	09401-15301-000	CLIP
23	09407-22403-000	CLAMP(L:220)
24	89511-84000-000	GROMMET,FUEL HOSE
25	89421-84000-000	セパレータ,ベーパリキッド
25	89421-84001-000	SEPARATOR,VAPOR LIQUID
26	09148-05005-000	NUT
27	03141-05168-000	スクリュ
27	03141-0516A-000	SCREW
27	03142-05169-000	Tapping screw
28	09352-70113-220	Cushion, inner - Cushion, inner (l:220->5)
28	09352-70113-600	HOSE(7X11X600)
28	09352-70119-600	Hose(7X11X600)
29	09401-12301-000	CLIP
30	09344-07017-000	ホース
30	09344-07505-000	HOSE(7X11X3550)
31	85428-78001-000	GROMMET
32	89260-82101-000	CAP ASSY,FUEL FILLER
33	85413-70000-000	GASKET - Gasket, fuel tank cap

OEM	Part name	Category
01107-06166-000	Bolt	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
01107-08206-000	Bolt	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
01500-0616A-000	Bolt	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
01500-0820A-000	Bolt	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
01517-08166-000	Bolt 8x16	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
01550-0816B-000	Bolt	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
02112-05086-000	Screw	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
02112-0508A-000	SCREW	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
03141-05168-000	スクリュ	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
03141-0516A-000	SCREW	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
03142-05169-000	Tapping screw	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
08321-0106A-000	WASHER,LOCK	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
08321-01087-000	WASHER,LOCK - Washer, lock	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
08321-21066-000	Lock washer	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
08321-21088-000	Lock washer	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09125-05042-000	SCREW(5X10)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09148-05005-000	NUT	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09160-06020-000	Washer	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09160-06066-000	WASHER(6.5X20X1.6) - Washer, throttle lever (6.5x20x1.6)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09160-08010-000	Washer (8.2x20x1.6)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09160-08054-000	WASHER(8.5X20X1.6)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09168-08022-000	ガスケット,8X17.5X1.5	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09168-08033-000	Gasket,8x17.5x1.5	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09343-11024-000	ホース,11X15X710	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09344-07017-000	ホース	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09344-07505-000	HOSE(7X11X3550)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09352-11153-00B	HOSE(11X15X2000) - Hose, breather	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09352-11154-00B	Hose(11X15X2000)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09352-70113-220	Cushion, inner - Cushion, inner (l:220->5)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09352-70113-600	HOSE(7X11X600)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09352-70119-600	Hose(7X11X600)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09400-52311-000	Сlamp	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09400-52312-000	CLAMP	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09401-12301-000	CLIP	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09401-15301-000	CLIP	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
09407-22403-000	CLAMP(L:220)	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
34810-84000-000	GAUGE ASSY,FUEL LEVEL	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
85413-70000-000	GASKET - Gasket, fuel tank cap	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
85428-78001-000	GROMMET	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89101-50A11-000	Tank assy,fuel	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89101-50AA0-000	TANK ASSY,FUEL	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89210-81080-000	NECK,FUEL FILLER	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89230-84001-000	PIPE,FUEL FILLER INLET	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89241-84000-000	ホース,フューエルフィラ,ロア	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89241-84001-000	HOSE,FUEL FILLER LWR	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89242-84000-000	HOSE,FUEL FILLER UPR	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89260-82101-000	CAP ASSY,FUEL FILLER	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89282-84000-000	SEAL,FUEL INLET PIPE	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89285-81001-000	PACKING,FUEL FILLER NECK SEAL	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89421-84000-000	セパレータ,ベーパリキッド	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89421-84001-000	SEPARATOR,VAPOR LIQUID	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
89511-84000-000	GROMMET,FUEL HOSE	fuel tank (SD2,SD3,SJ2,SJ3,SF2,SW2,SW3,SQ3; 1986-07-01~1988-07-01)
