CA71V

Suzuki ALTO-A-STAR-CELERIO · 1984 · 2,381 parts · 86 categories

2,381 items

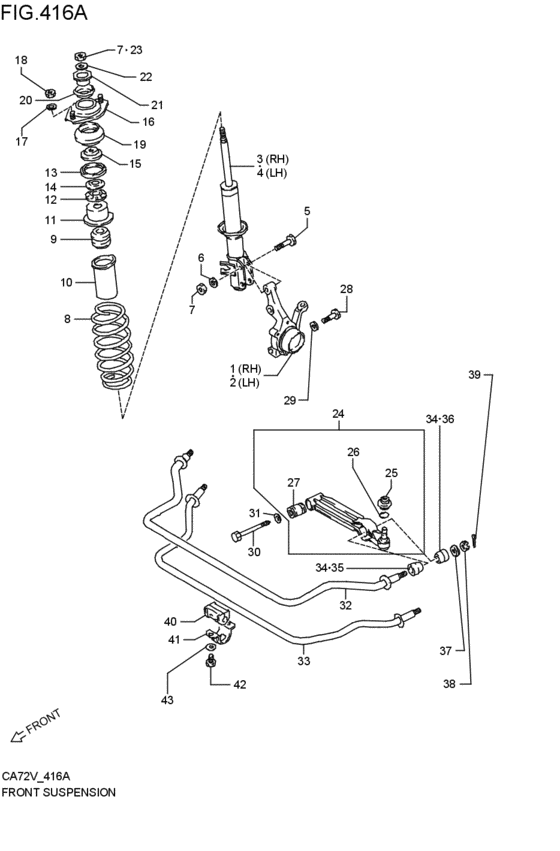

front suspension (1986-07-01~1988-07-01) 58

#	OEM	Part name
1	45111-84100-000	KNUCKLE,STEERING,R
2	45151-84100-000	KNUCKLE,STEERING,L
3	41601-84131-000	ストラットアッシ,フロントサスペンション,ライト
3	41601-84022-000	STRUT ASSY,FR SUSPENSION,R
4	41602-84131-000	ストラットアッシ,フロントサスペンション,レフト
4	41602-84022-000	STRUT ASSY,FR SUSPENSION,L
5	09100-12033-000	ボルト,12X53
5	09103-12501-000	BOLT(12X55)
6	08321-31123-000	WASHER LOCK
6	08321-0112A-000	WASHER,LOCK
7	08310-11123-000	NUT M12X1X25X10
7	08310-0012A-000	NUT
8	41111-84133-000	スプリング,フロントコイル
9	42111-78040-000	STOPPER,BUMP
10	41211-78000-000	SEAT,SPRING RUBBER
11	41231-78001-000	SEAT,SPRING UPPER
12	41741-82001-000	BEARING,FR STRUT
13	41732-82000-000	SEAL,FR STRUT BEARING DUST
14	41731-82000-000	SEAT,FRONT STRUT BEARING
15	41720-82000-000	SEAT,STRUT MOUNT
16	41710-82000-000	SUPPORT,FRONT STRUT
17	08321-31083-000	New Genuine Part
17	08321-0108A-000	WASHER,LOCK
17	08321-0108B-000	WASHER,LOCK
18	08310-11083-000	NUT M8X125X65
18	08310-0008A-000	NUT - Nut, bead stopper
18	08310-0008B-000	NUT
19	41712-82000-000	MOUNT,FR STRUT
20	41713-82000-000	STOPPER,FRONT STRUT REBOUND
21	41714-82000-000	SUPPORT,FRONT STRUT INNER
22	08321-21123-000	WASHER LOCK
24	45200-84000-000	アームアッシ,フロントサスペンションコントロール
24	45200-84001-000	ARM ASSY,FR SPNSN CONTROL
25	45723-82000-000	BOOT SET LOWER ARM
25	45723-70B00-000	SEAL SET,DUST
25	45723-70B01-000	Seal Set,dust
25	45700-70810-000	Seal Set,dust
26	09401-27402-000	CLIP
27	09319-10030-000	BUSH(10.2X25.5X52.2) - Bushing
28	09100-10184-000	BOLT(10X40)
29	08321-31103-000	ロックワッシャ
29	08321-0110A-000	WASHER,LOCK
29	08321-0110B-000	WASHER,LOCK - Washer, knuckle end
30	09100-10223-000	BOLT(10X89.5)
32	42310-84010-000	バー,フロントスタビライザ
32	42310-50A10-000	BAR,FR STABILIZER
34	42451-78040-000	BUSH,STABILIZER BAR
37	09164-12017-000	WASHER
38	08314-41123-000	Nut
38	08314-4012A-000	NUT
39	04111-30206-000	コッタピン
39	04111-3020A-000	PIN
40	42431-78020-000	MOUNT,STAB BAR
41	42441-78001-000	ブラケット,スタビライザバーマウント
41	42441-84000-000	BRACKET,STABILIZER BAR MOUNT
42	01107-10253-000	ボルト
42	01500-1025A-000	Bolt
43	08321-21103-000	Lock washer

OEM	Part name	Category
01107-10253-000	ボルト	front suspension (1986-07-01~1988-07-01)
01500-1025A-000	Bolt	front suspension (1986-07-01~1988-07-01)
04111-30206-000	コッタピン	front suspension (1986-07-01~1988-07-01)
04111-3020A-000	PIN	front suspension (1986-07-01~1988-07-01)
08310-0008A-000	NUT - Nut, bead stopper	front suspension (1986-07-01~1988-07-01)
08310-0008B-000	NUT	front suspension (1986-07-01~1988-07-01)
08310-0012A-000	NUT	front suspension (1986-07-01~1988-07-01)
08310-11083-000	NUT M8X125X65	front suspension (1986-07-01~1988-07-01)
08310-11123-000	NUT M12X1X25X10	front suspension (1986-07-01~1988-07-01)
08314-4012A-000	NUT	front suspension (1986-07-01~1988-07-01)
08314-41123-000	Nut	front suspension (1986-07-01~1988-07-01)
08321-0108A-000	WASHER,LOCK	front suspension (1986-07-01~1988-07-01)
08321-0108B-000	WASHER,LOCK	front suspension (1986-07-01~1988-07-01)
08321-0110A-000	WASHER,LOCK	front suspension (1986-07-01~1988-07-01)
08321-0110B-000	WASHER,LOCK - Washer, knuckle end	front suspension (1986-07-01~1988-07-01)
08321-0112A-000	WASHER,LOCK	front suspension (1986-07-01~1988-07-01)
08321-21103-000	Lock washer	front suspension (1986-07-01~1988-07-01)
08321-21123-000	WASHER LOCK	front suspension (1986-07-01~1988-07-01)
08321-31083-000	New Genuine Part	front suspension (1986-07-01~1988-07-01)
08321-31103-000	ロックワッシャ	front suspension (1986-07-01~1988-07-01)
08321-31123-000	WASHER LOCK	front suspension (1986-07-01~1988-07-01)
09100-10184-000	BOLT(10X40)	front suspension (1986-07-01~1988-07-01)
09100-10223-000	BOLT(10X89.5)	front suspension (1986-07-01~1988-07-01)
09100-12033-000	ボルト,12X53	front suspension (1986-07-01~1988-07-01)
09103-12501-000	BOLT(12X55)	front suspension (1986-07-01~1988-07-01)
09164-12017-000	WASHER	front suspension (1986-07-01~1988-07-01)
09319-10030-000	BUSH(10.2X25.5X52.2) - Bushing	front suspension (1986-07-01~1988-07-01)
09401-27402-000	CLIP	front suspension (1986-07-01~1988-07-01)
41111-84133-000	スプリング,フロントコイル	front suspension (1986-07-01~1988-07-01)
41211-78000-000	SEAT,SPRING RUBBER	front suspension (1986-07-01~1988-07-01)
41231-78001-000	SEAT,SPRING UPPER	front suspension (1986-07-01~1988-07-01)
41601-84022-000	STRUT ASSY,FR SUSPENSION,R	front suspension (1986-07-01~1988-07-01)
41601-84131-000	ストラットアッシ,フロントサスペンション,ライト	front suspension (1986-07-01~1988-07-01)
41602-84022-000	STRUT ASSY,FR SUSPENSION,L	front suspension (1986-07-01~1988-07-01)
41602-84131-000	ストラットアッシ,フロントサスペンション,レフト	front suspension (1986-07-01~1988-07-01)
41710-82000-000	SUPPORT,FRONT STRUT	front suspension (1986-07-01~1988-07-01)
41712-82000-000	MOUNT,FR STRUT	front suspension (1986-07-01~1988-07-01)
41713-82000-000	STOPPER,FRONT STRUT REBOUND	front suspension (1986-07-01~1988-07-01)
41714-82000-000	SUPPORT,FRONT STRUT INNER	front suspension (1986-07-01~1988-07-01)
41720-82000-000	SEAT,STRUT MOUNT	front suspension (1986-07-01~1988-07-01)
41731-82000-000	SEAT,FRONT STRUT BEARING	front suspension (1986-07-01~1988-07-01)
41732-82000-000	SEAL,FR STRUT BEARING DUST	front suspension (1986-07-01~1988-07-01)
41741-82001-000	BEARING,FR STRUT	front suspension (1986-07-01~1988-07-01)
42111-78040-000	STOPPER,BUMP	front suspension (1986-07-01~1988-07-01)
42310-50A10-000	BAR,FR STABILIZER	front suspension (1986-07-01~1988-07-01)
42310-84010-000	バー,フロントスタビライザ	front suspension (1986-07-01~1988-07-01)
42431-78020-000	MOUNT,STAB BAR	front suspension (1986-07-01~1988-07-01)
42441-78001-000	ブラケット,スタビライザバーマウント	front suspension (1986-07-01~1988-07-01)
42441-84000-000	BRACKET,STABILIZER BAR MOUNT	front suspension (1986-07-01~1988-07-01)
42451-78040-000	BUSH,STABILIZER BAR	front suspension (1986-07-01~1988-07-01)
45111-84100-000	KNUCKLE,STEERING,R	front suspension (1986-07-01~1988-07-01)
45151-84100-000	KNUCKLE,STEERING,L	front suspension (1986-07-01~1988-07-01)
45200-84000-000	アームアッシ,フロントサスペンションコントロール	front suspension (1986-07-01~1988-07-01)
45200-84001-000	ARM ASSY,FR SPNSN CONTROL	front suspension (1986-07-01~1988-07-01)
45700-70810-000	Seal Set,dust	front suspension (1986-07-01~1988-07-01)
45723-70B00-000	SEAL SET,DUST	front suspension (1986-07-01~1988-07-01)
45723-70B01-000	Seal Set,dust	front suspension (1986-07-01~1988-07-01)
45723-82000-000	BOOT SET LOWER ARM	front suspension (1986-07-01~1988-07-01)

Source: Public OEM parts-catalog data
Variants: 2 / 210
Category: 86
Collected: 2026-08-01
