CA71V

Suzuki ALTO-A-STAR-CELERIO · 1984 · 2,381 parts · 86 categories

2,381 items

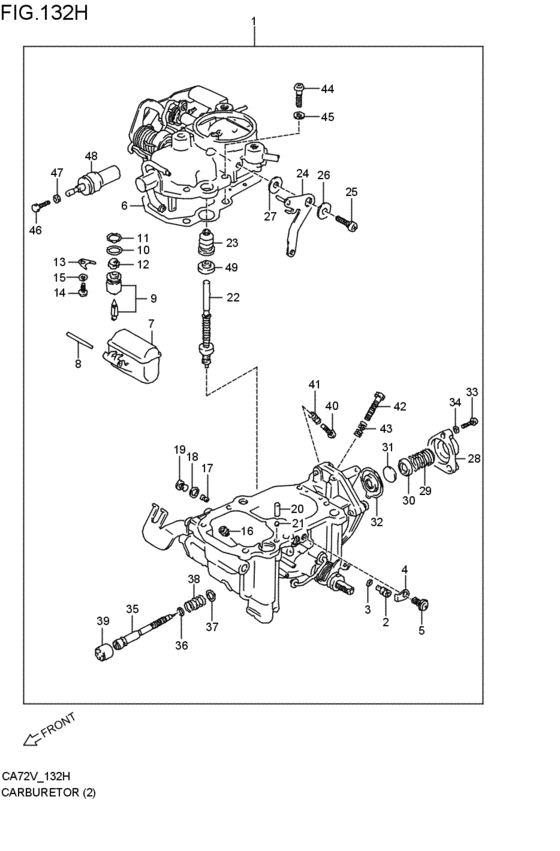

Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01) 73

#	OEM	Part name
1	13200-51A00-000	キャブレタアッシ
1	13200-51A30-000	キャブレタアッシ
2	09492-42008-000	JET,PILOT
3	13278-45010-000	O RING - O-ring
4	13398-78110-000	PLATE
5	13397-81000-000	スクリュ
5	02112-0510A-000	SCREW
5	02112-05107-000	SCREW - Screw, bracket
6	13269-51A00-000	ガスケット
7	13319-84100-000	フロート
7	13250-841T0-000	FLOAT SET
8	13254-78110-000	PIN FLOAT
9	13370-78110-000	バルブアッシ,ニードル
10	13294-78310-000	Oリング
10	13374-32G00-000	O RING
11	13378-84100-000	ワッシャ
12	13376-84110-000	13376-19f00 - Filter
12	13376-19F00-000	FILTER
13	13373-39110-000	PLATE
14	02112-04066-000	Screw
14	02112-0406B-000	SCREW
15	08321-21046-000	Lock washer
15	08321-0104A-000	WASHER,LOCK
16	09491-92005-000	JET,MAIN(92.5) - Jet, main (92.5)
17	09492-55010-000	Jet,pilot - Jet, pilot air (55)
17	09492-55012-000	JET,ENRICHMENT(55) - Jet, power (55)
17	09492-90003-000	ジェット,エンリッチメント
18	13291-41640-000	Washer
18	13606-18E00-000	WASHER - Lock washer
19	13605-73000-000	SCREW
20	13325-84000-000	ウエイト
20	13240-840T0-000	WEIGHT SET,PUMP
21	13322-84000-000	BALL
22	13321-51A00-000	ポンプアッシ
22	13355-60FT0-000	PLUNGER SET
23	13322-51A00-000	キャップ
24	13323-51A00-000	レバーアッシ
25	13601-05148-000	SCREW(5X14)
25	13601-05148-XC0	SCREW(5X14)
26	13324-51A00-000	リング
27	13325-51A00-000	ワッシャ
28	13276-84100-000	カバー
29	13277-84100-000	スプリング
30	13278-84100-000	プレート
31	13279-84100-000	プレート
32	13275-84100-000	ダイヤフラム
33	02112-04166-000	Screw
33	02112-0416A-000	SCREW
35	13297-84100-000	スクリュ,アジャスタ
35	13270-841T0-000	スクリュ,アジャスタ
36	13516-65710-000	O-RING
37	13615-45010-000	WASHER,STARTER SHAFT
38	13298-84100-000	スプリング
39	13699-77000-000	CAP IDLE LIMIT
40	13233-84102-000	スクリュ
40	02112-0420A-000	SCREW
40	02112-04203-000	Screw 4x20
41	13234-84100-000	SPRING
41	13601-60AT0-000	SCREW SET,ADJUST - Spring
42	13601-04148-000	SCREW
43	13271-93011-000	SPRING
44	02112-05166-000	Screw
44	02112-0516B-000	SCREW
44	02112-0516A-000	SCREW
45	08321-21056-000	Lock washer
45	08321-0105B-000	WASHER,LOCK
45	08321-0105A-000	WASHER,LOCK
46	13376-84020-000	SCREW
47	08310-22046-000	Nut
47	08310-0004A-000	NUT
48	13212-84000-000	ELEMENT THERMO
48	13228-840T0-000	ELEMENT SET,THERMO
49	13326-51A00-000	リング,ポンプ

OEM	Part name	Category
02112-04066-000	Screw	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-0406B-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-04166-000	Screw	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-0416A-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-04203-000	Screw 4x20	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-0420A-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-05107-000	SCREW - Screw, bracket	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-0510A-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-05166-000	Screw	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-0516A-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
02112-0516B-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
08310-0004A-000	NUT	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
08310-22046-000	Nut	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
08321-0104A-000	WASHER,LOCK	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
08321-0105A-000	WASHER,LOCK	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
08321-0105B-000	WASHER,LOCK	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
08321-21046-000	Lock washer	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
08321-21056-000	Lock washer	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
09491-92005-000	JET,MAIN(92.5) - Jet, main (92.5)	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
09492-42008-000	JET,PILOT	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
09492-55010-000	Jet,pilot - Jet, pilot air (55)	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
09492-55012-000	JET,ENRICHMENT(55) - Jet, power (55)	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
09492-90003-000	ジェット,エンリッチメント	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13200-51A00-000	キャブレタアッシ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13200-51A30-000	キャブレタアッシ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13212-84000-000	ELEMENT THERMO	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13228-840T0-000	ELEMENT SET,THERMO	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13233-84102-000	スクリュ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13234-84100-000	SPRING	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13240-840T0-000	WEIGHT SET,PUMP	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13250-841T0-000	FLOAT SET	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13254-78110-000	PIN FLOAT	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13269-51A00-000	ガスケット	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13270-841T0-000	スクリュ,アジャスタ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13271-93011-000	SPRING	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13275-84100-000	ダイヤフラム	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13276-84100-000	カバー	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13277-84100-000	スプリング	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13278-45010-000	O RING - O-ring	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13278-84100-000	プレート	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13279-84100-000	プレート	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13291-41640-000	Washer	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13294-78310-000	Oリング	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13297-84100-000	スクリュ,アジャスタ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13298-84100-000	スプリング	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13319-84100-000	フロート	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13321-51A00-000	ポンプアッシ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13322-51A00-000	キャップ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13322-84000-000	BALL	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13323-51A00-000	レバーアッシ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13324-51A00-000	リング	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13325-51A00-000	ワッシャ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13325-84000-000	ウエイト	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13326-51A00-000	リング,ポンプ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13355-60FT0-000	PLUNGER SET	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13370-78110-000	バルブアッシ,ニードル	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13373-39110-000	PLATE	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13374-32G00-000	O RING	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13376-19F00-000	FILTER	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13376-84020-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13376-84110-000	13376-19f00 - Filter	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13378-84100-000	ワッシャ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13397-81000-000	スクリュ	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13398-78110-000	PLATE	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13516-65710-000	O-RING	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13601-04148-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13601-05148-000	SCREW(5X14)	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13601-05148-XC0	SCREW(5X14)	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13601-60AT0-000	SCREW SET,ADJUST - Spring	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13605-73000-000	SCREW	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13606-18E00-000	WASHER - Lock washer	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13615-45010-000	WASHER,STARTER SHAFT	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
13699-77000-000	CAP IDLE LIMIT	Carburetor (MT:(D,N,G,SD2,SD3,SJ2,SJ3,SF2,SQ3); 1986-07-01~1988-07-01)
