| 01121-06941 |
BOLT |

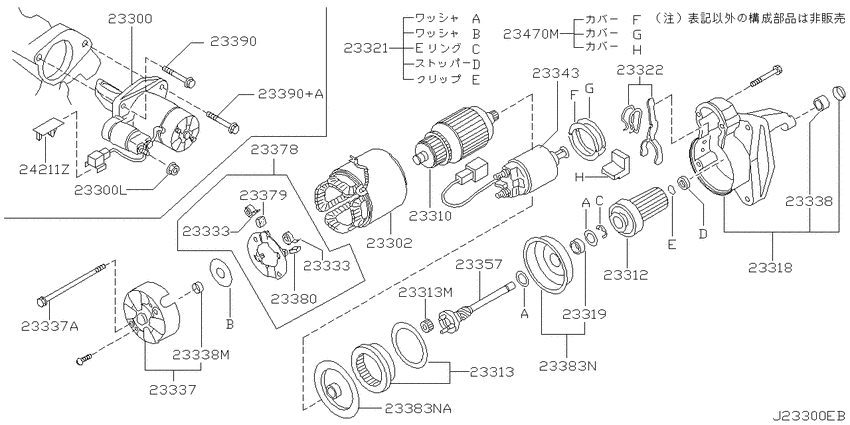

Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23300-2Y900 |
Motor Assy-Starter |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23302-31U00 |
Yoke Assy |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23302-8H30A |
Yoke Assy |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23312-2Y900 |
Pinion Assy |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23318-2Y900 |
Case Assy-Gear |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23318-2Y90A |
Case Assy-Gear |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23319-97E00 |
METAL-GEAR CASE |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23333-50Y02 |
Spring-Brush |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23337-31U00 |
Cover Assy-Rear |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23337-8H300 |
Cover Assy-Rear |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23340-M4900 |
Bolt-Through |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23343-31U00 |
Switch Assy-Magnetic |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23357-31U00 |
Shaft-Pinion |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23361-0M300 |
Gear |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23367-31U01 |
Planet Gear |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23378-0M300 |
Holder Assy-Brush |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23379-0M300 |
Brush-Minus |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23380-0M300 |
Brush-Plus |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23383-0M301 |
Bracket Assy-Center |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23383-2J201 |
Bracket Assy-Center |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23390-5Y710 |
Bolt |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23390-5Y715 |
Bolt |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23390-5Y71A |
Bolt |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23390-8H302 |
Bolt |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
| 23470-0M300 |
Cover-Dust |
Starter motor (2001-11-01 ~ 2002-08-01; 日立; VQ20DE) |
