Search › Model › C63A

C63A

Mitsubishi MIRAGE · 1990 · 2,483 parts · 163 categories
C63A ×

← Back to categories

2,483 items

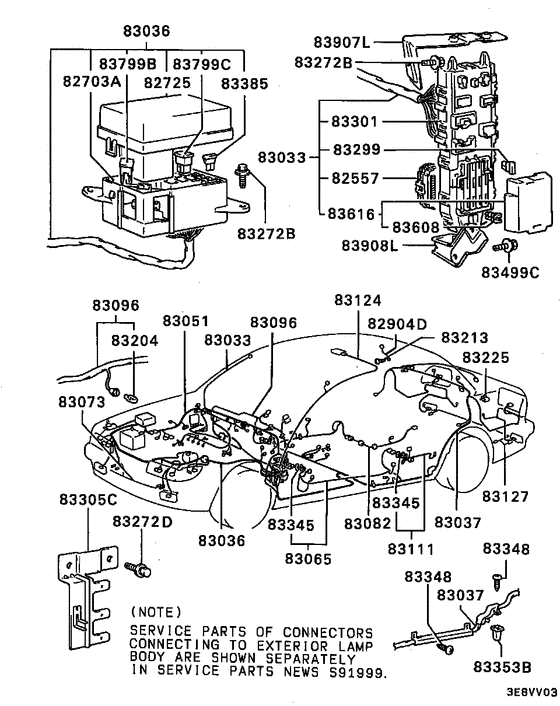

Wiring & attaching parts (WIRING HARNESS) 49
#OEMPart name
82557 MB542131 TIMER UNIT,DEFOGGER
82703 MB542090 BOX ASSY, RELAY
82725 MB542092 COVER,RELAY BOX
82725 MB568334 COVER, RELAY BOX
82904 MB686978 CABLE,DEFOGGER
83033 MB617214 HARNESS,BODY MAIN
83033 MB801462 HARNESS,BODY MAIN
83036 MB686922 HARNESS,CHASSIS,FR
83036 MB686923 HARNESS,CHASSIS,FR
83037 MB686938 HARNESS,CHASSIS,RR
83037 MB686939 HARNESS,CHASSIS,RR
83051 MB686967 HARNESS,CONTROL
83051 MB686975 HARNESS,CONTROL
83051 MB686966 HARNESS,CONTROL
83051 MB686974 HARNESS,CONTROL
83065 MB617240 HARNESS,FR DOOR
83065 MB617241 HARNESS,FR DOOR
83065 MB617244 HARNESS,FR DOOR
83065 MB617245 HARNESS,FR DOOR
83073 MB686936 HARNESS,FR BUMPER
83082 MB686953 HARNESS,FUEL GAUGE UNIT
83096 MB686947 HARNESS,INSTRUMENT PANEL
83111 MB686943 HARNESS,RR DOOR
83124 MB686952 HARNESS,ROOM LAMP
83127 MB686945 HARNESS,RR BUMPER
83204 MB562619 BULB, INSTRUMENT PANEL ASHTRAY - 14v-1.4w
83213 MF453031 SCREW 5x12 - Tapping,5x12
83225 MU481041 CLIP, TRUNK LID LOCKING - 9.5
83272 MS240121 BOLT, CONNROD - Washer assembled,6x16
83272 MS240122 BOLT, ENG FR MOUNTING - Washer assembled,6x20
83272 MS240125 BOLT, FUEL TANK - Washer assembled,8x20
83299 MS810986 FUSE, A/C CONTROL EQUIP - Blade type,10a
83299 MS810987 FUSE, CHASSIS WIRING - Blade type,15a
83299 MS810988 FUSE, A/C CONTROL EQUIP - Blade type,20a
83301 MB542100 BLOCK, CHASSIS HARNESS JUNCTION
83305 MB697189 BRACKET, HARNESS CONNECTOR
83345 MB529428 GROMMET, DOOR WIRING - Plastic,rubber,22x42-26x35
83345 MB617237 GROMMET,DOOR WIRING - FOR FR DOOR HARN
83353 MU480032 GROMMET, SIDE AIR DAM - 5
83385 MS810967 FUSE, RELAY - Blade type,20a
83499 MB133273 BOLT, FUEL LINE - Washer assembled,6x16
83608 MB542110 PULLER, FUSE
83616 MB617119 COVER,FUSE BOX
83799 MU840021 FUSIBLE LINK - 80a,screw up type
83799 MU840000 FUSIBLE LINK - 20a,conn type
83799 MU840015 FUSIBLE LINK - 30a,conn type
83799 MU840016 FUSIBLE LINK - 40a,conn type
83907 MB543551 BRACKET,JUNCTION BLOCK,UPR LH
83908 MB543553 BRACKET,JUNCTION BLOCK,LWR LH
