Search › Model › C63A

C63A

Mitsubishi MIRAGE · 1990 · 2,483 parts · 163 categories

2,483 items

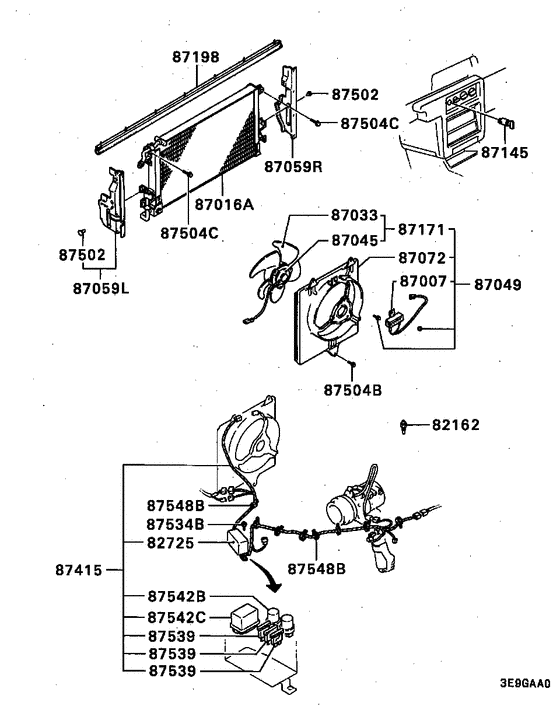

A/c condenser, piping (A/C CONDENSER & A/C CONTROL) 24

#	OEM	Part name
82162	MB439576	SWITCH, WATER TEMPERATURE
82725	MB542092	COVER,RELAY BOX
82725	MB568334	COVER, RELAY BOX
87007	MB630048	RESISTOR, RADIATOR SHROUD BLOWER
87016	MB657703	CONDENSER ASSY,A/C REFRIGERANT
87033	MB897437	FAN, A/C CONDENSER
87045	MB897448	MOTOR,A/C CONDENSER FAN
87049	MB657858	MOTOR & SHROUD,A/C CONDENSER FAN
87059	MB568248	SEAL, A/C CONDENSER, LH - Rubber
87059	MB568249	SEAL, A/C CONDENSER, RH - Rubber
87072	MB630322	SHROUD, A/C CONDENSER FAN
87145	MB609149	SWITCH, AUTO A/C
87171	MB630325	FAN & MOTOR, A/C CONDENSER
87198	MB439685	WEATHERSTRIP, A/C CONDENSER
87415	MB869694	HARNESS,A/C CONTROL
87502	MB332914	CLIP, A/C CONDENSER - 6
87504	MF243622	BOLT, ROCKER COVER - Washer assembled,6x12
87504	MS240147	BOLT, GLOW CONTROL EQUIP - Washer assembled,8x30
87534	MS450157	SCREW, ENG CONTROL EQUIP - Tapping,5x16
87539	MS810986	FUSE, A/C CONTROL EQUIP - Blade type,10a
87539	MS810989	FUSE, A/C CONTROL EQUIP - Blade type,25a
87542	MB084670	RELAY, ENG CONTROL EQUIP
87542	MB183866	RELAY - 056700-5680/ssa521a607a
87548	MD013832	BAND, EGR EQUIP - 110

OEM	Part name	Category
MB084670	RELAY, ENG CONTROL EQUIP	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB183866	RELAY - 056700-5680/ssa521a607a	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB332914	CLIP, A/C CONDENSER - 6	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB439576	SWITCH, WATER TEMPERATURE	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB439685	WEATHERSTRIP, A/C CONDENSER	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB542092	COVER,RELAY BOX	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB568248	SEAL, A/C CONDENSER, LH - Rubber	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB568249	SEAL, A/C CONDENSER, RH - Rubber	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB568334	COVER, RELAY BOX	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB609149	SWITCH, AUTO A/C	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB630048	RESISTOR, RADIATOR SHROUD BLOWER	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB630322	SHROUD, A/C CONDENSER FAN	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB630325	FAN & MOTOR, A/C CONDENSER	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB657703	CONDENSER ASSY,A/C REFRIGERANT	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB657858	MOTOR & SHROUD,A/C CONDENSER FAN	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB869694	HARNESS,A/C CONTROL	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB897437	FAN, A/C CONDENSER	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MB897448	MOTOR,A/C CONDENSER FAN	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MD013832	BAND, EGR EQUIP - 110	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MF243622	BOLT, ROCKER COVER - Washer assembled,6x12	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MS240147	BOLT, GLOW CONTROL EQUIP - Washer assembled,8x30	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MS450157	SCREW, ENG CONTROL EQUIP - Tapping,5x16	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MS810986	FUSE, A/C CONTROL EQUIP - Blade type,10a	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
MS810989	FUSE, A/C CONTROL EQUIP - Blade type,25a	A/c condenser, piping (A/C CONDENSER & A/C CONTROL)
