Search › Model › C34
C34

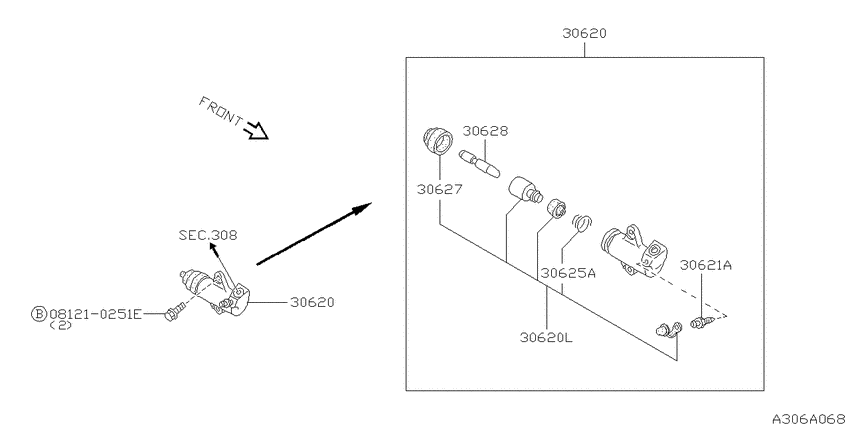

Clutch operating cylinder (1996-05-01 ~ ; RD28.MT) 5
| # | OEM | Part name |
|---|---|---|
| 30620 | 30620-70T20 | Cylinder Assy-Clutch Operating |
| 30621 | 41128-45P0A | Screw |
| 30625 | 30622-69F02 | Spring-Piston |
| 30627 | 30627-16E00 | COVER-DUST |
| 30628 | 30628-05U00 | Rod-Push |
| OEM | Part name | Category |
|---|---|---|
| 30620-70T20 | Cylinder Assy-Clutch Operating | Clutch operating cylinder (1996-05-01 ~ ; RD28.MT) |
| 30622-69F02 | Spring-Piston | Clutch operating cylinder (1996-05-01 ~ ; RD28.MT) |
| 30627-16E00 | COVER-DUST | Clutch operating cylinder (1996-05-01 ~ ; RD28.MT) |
| 30628-05U00 | Rod-Push | Clutch operating cylinder (1996-05-01 ~ ; RD28.MT) |
| 41128-45P0A | Screw | Clutch operating cylinder (1996-05-01 ~ ; RD28.MT) |
