C34

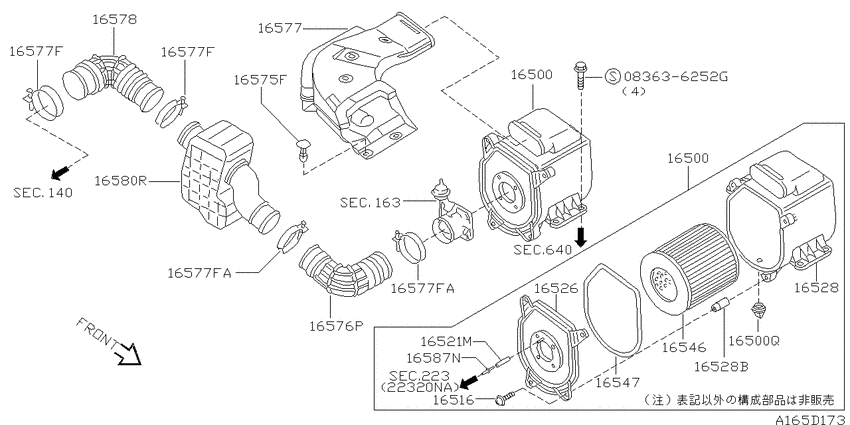

Air cleaner (1996-05-01 ~ ; RD28) 10
| # | OEM | Part name |
|---|---|---|
| 16516 | 16516-40L01 | Bolt-Center |
| 16521 | 16537-81T01 | Hose-Vacuum |
| 16526 | 16526-81T01 | Air Cleaner Cover |
| 16528 | 16562-1C300 | Nut |
| 16576 | 16576-81T01 | Duct Assy-Air |
| 16577 | 16556-84T00 | Duct Assy-Air |
| 16577 | 01555-00551 | CLAMP-HOSE |
| 16578 | 16578-81T01 | Duct-Air |
| 16580 | 16585-81T02 | Resonator Assy |
| 16587 | 16587-1P002 | Connector |
| OEM | Part name | Category |
|---|---|---|
| 01555-00551 | CLAMP-HOSE | Air cleaner (1996-05-01 ~ ; RD28) |
| 16516-40L01 | Bolt-Center | Air cleaner (1996-05-01 ~ ; RD28) |
| 16526-81T01 | Air Cleaner Cover | Air cleaner (1996-05-01 ~ ; RD28) |
| 16537-81T01 | Hose-Vacuum | Air cleaner (1996-05-01 ~ ; RD28) |
| 16556-84T00 | Duct Assy-Air | Air cleaner (1996-05-01 ~ ; RD28) |
| 16562-1C300 | Nut | Air cleaner (1996-05-01 ~ ; RD28) |
| 16576-81T01 | Duct Assy-Air | Air cleaner (1996-05-01 ~ ; RD28) |
| 16578-81T01 | Duct-Air | Air cleaner (1996-05-01 ~ ; RD28) |
| 16585-81T02 | Resonator Assy | Air cleaner (1996-05-01 ~ ; RD28) |
| 16587-1P002 | Connector | Air cleaner (1996-05-01 ~ ; RD28) |
