Search › Model › C32
C32

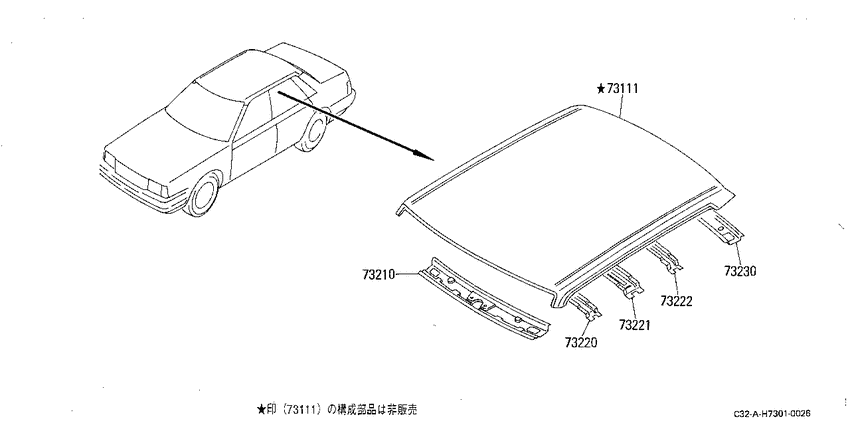

Roof panel (1984-10-01 ~ ; 標準ルーフ車; ALL) 5
| # | OEM | Part name |
|---|---|---|
| 73111 | 73112-61L30 | Roof |
| 73210 | 73214-61L00 | Rail-Front Roof |
| 73221 | 73242-61L00 | Bow-Roof, No 2 |
| 73222 | 73252-61L00 | Bow-Roof, No 3 |
| 73230 | 73234-61L00 | Rail-Rear Roof |
| OEM | Part name | Category |
|---|---|---|
| 73112-61L30 | Roof | Roof panel (1984-10-01 ~ ; 標準ルーフ車; ALL) |
| 73214-61L00 | Rail-Front Roof | Roof panel (1984-10-01 ~ ; 標準ルーフ車; ALL) |
| 73234-61L00 | Rail-Rear Roof | Roof panel (1984-10-01 ~ ; 標準ルーフ車; ALL) |
| 73242-61L00 | Bow-Roof, No 2 | Roof panel (1984-10-01 ~ ; 標準ルーフ車; ALL) |
| 73252-61L00 | Bow-Roof, No 3 | Roof panel (1984-10-01 ~ ; 標準ルーフ車; ALL) |
