C32

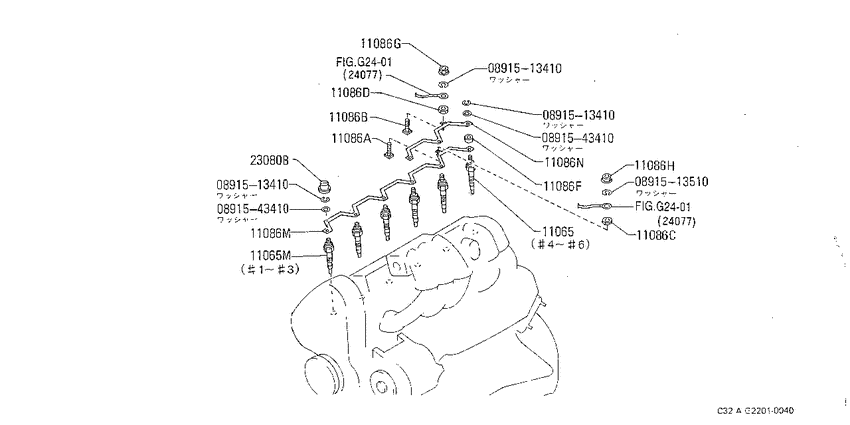

Ignition System (1986-10-01 ~ ; RD28) 14
| # | OEM | Part name |
|---|---|---|
| 11065 | 11065-V7202 | Plug-Glow |
| 11065 | 11065-V7203 | Plug-Glow |
| 11086 | 11035-V7201 | Bolt-Plate |
| 11086 | 11035-V7200 | Bolt-Plate |
| 11086 | 11066-V7201 | Nut |
| 11086 | 11066-V7200 | Nut |
| 11086 | 11068-V7200 | Spacer-Glow Plate |
| 11086 | 11066-V7202 | Nut |
| 11086 | 11066-V7203 | Nut |
| 11086 | 11086-V7200 | Plate-Connector, Glow Plug |
| 11086 | 11086-V7201 | Plate-Connector, Glow Plug |
| 23080 | 11066-V7204 | Nut |
| 891513510 | 08915-13510 | ワツシヤ-,スプリング |
| 891543410 | 08915-43410 | ワツシヤ-,プレ-ン |
| OEM | Part name | Category |
|---|---|---|
| 08915-13510 | ワツシヤ-,スプリング | Ignition System (1986-10-01 ~ ; RD28) |
| 08915-43410 | ワツシヤ-,プレ-ン | Ignition System (1986-10-01 ~ ; RD28) |
| 11035-V7200 | Bolt-Plate | Ignition System (1986-10-01 ~ ; RD28) |
| 11035-V7201 | Bolt-Plate | Ignition System (1986-10-01 ~ ; RD28) |
| 11065-V7202 | Plug-Glow | Ignition System (1986-10-01 ~ ; RD28) |
| 11065-V7203 | Plug-Glow | Ignition System (1986-10-01 ~ ; RD28) |
| 11066-V7200 | Nut | Ignition System (1986-10-01 ~ ; RD28) |
| 11066-V7201 | Nut | Ignition System (1986-10-01 ~ ; RD28) |
| 11066-V7202 | Nut | Ignition System (1986-10-01 ~ ; RD28) |
| 11066-V7203 | Nut | Ignition System (1986-10-01 ~ ; RD28) |
| 11066-V7204 | Nut | Ignition System (1986-10-01 ~ ; RD28) |
| 11068-V7200 | Spacer-Glow Plate | Ignition System (1986-10-01 ~ ; RD28) |
| 11086-V7200 | Plate-Connector, Glow Plug | Ignition System (1986-10-01 ~ ; RD28) |
| 11086-V7201 | Plate-Connector, Glow Plug | Ignition System (1986-10-01 ~ ; RD28) |
