Search › Model › C31
C31

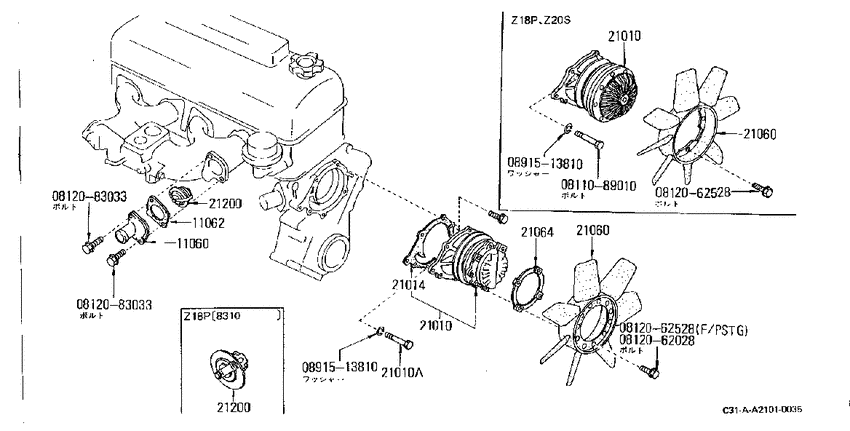

water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) 10
| # | OEM | Part name |
|---|---|---|
| 11060 | 11060-W7000 | Outlet-Water |
| 11062 | 11062-S3001 | Gasket-Water Outlet |
| 21010 | 21010-N5829 | Pump Assy-Water |
| 21014 | 21014-21000 | Gasket-Water Pump |
| 811089010 | 08110-89010 | Bolt-hexagon |
| 812062028 | 08120-62028 | Bolt-hexagon |
| 812062528 | 08120-62528 | Bolt-hexagon |
| 812083033 | 08120-83033 | Bolt-hexagon |
| 812083033 | 08120-8302F | Bolt-hexagon |
| 891513810 | 08915-13810 | ワツシヤ-,スプリング |
| OEM | Part name | Category |
|---|---|---|
| 08110-89010 | Bolt-hexagon | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 08120-62028 | Bolt-hexagon | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 08120-62528 | Bolt-hexagon | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 08120-8302F | Bolt-hexagon | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 08120-83033 | Bolt-hexagon | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 08915-13810 | ワツシヤ-,スプリング | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 11060-W7000 | Outlet-Water | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 11062-S3001 | Gasket-Water Outlet | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 21010-N5829 | Pump Assy-Water | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
| 21014-21000 | Gasket-Water Pump | water pump & ｻ-ﾓｽﾀﾂﾄ (1983-10-01 ~ ; Z18P) |
