C31

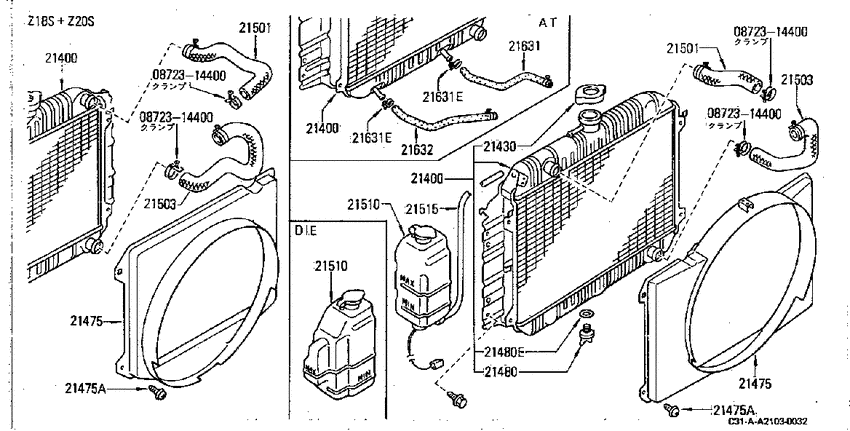

radiator (1980-11-01 ~ ; ALL) 11
| # | OEM | Part name |
|---|---|---|
| 21400 | 21400-13L00 | Radiator Assy |
| 21400 | 21400-13L01 | Radiator Assy |
| 21400 | 21400-13L02 | Radiator Assy |
| 21400 | 21400-13L15 | Radiator Assy |
| 21430 | 21430-89900 | Cap Assy-Radiator |
| 21430 | 21430-89901 | Cap Assy-Radiator |
| 21475 | 21475-11L01 | Shroud Assy |
| 21475 | 01461-00041 | SCREW |
| 21501 | 21501-11L01 | Hose-Radiator, Upper |
| 21503 | 21503-11L00 | Hose-Radiator, Lower |
| 872314400 | 08723-14400 | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 01461-00041 | SCREW | radiator (1980-11-01 ~ ; ALL) |
| 08723-14400 | CLAMP | radiator (1980-11-01 ~ ; ALL) |
| 21400-13L00 | Radiator Assy | radiator (1980-11-01 ~ ; ALL) |
| 21400-13L01 | Radiator Assy | radiator (1980-11-01 ~ ; ALL) |
| 21400-13L02 | Radiator Assy | radiator (1980-11-01 ~ ; ALL) |
| 21400-13L15 | Radiator Assy | radiator (1980-11-01 ~ ; ALL) |
| 21430-89900 | Cap Assy-Radiator | radiator (1980-11-01 ~ ; ALL) |
| 21430-89901 | Cap Assy-Radiator | radiator (1980-11-01 ~ ; ALL) |
| 21475-11L01 | Shroud Assy | radiator (1980-11-01 ~ ; ALL) |
| 21501-11L01 | Hose-Radiator, Upper | radiator (1980-11-01 ~ ; ALL) |
| 21503-11L00 | Hose-Radiator, Lower | radiator (1980-11-01 ~ ; ALL) |
