Search › Model › C31
C31

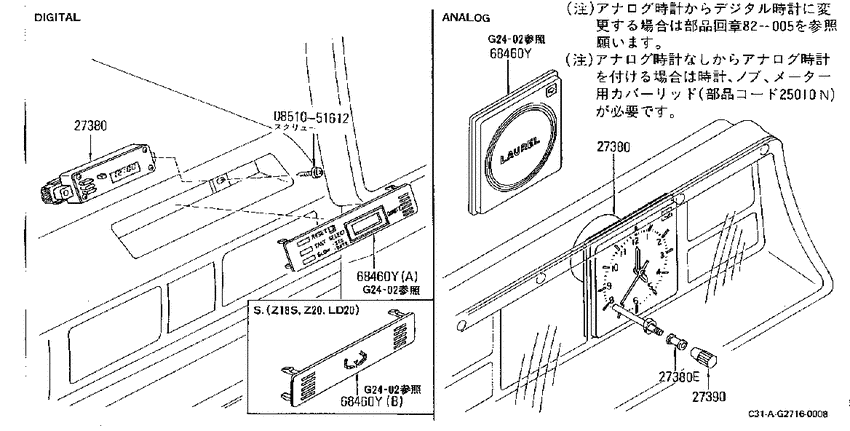

gauge (1980-11-01 ~ ; ALL) 10
| # | OEM | Part name |
|---|---|---|
| 27380 | 25820-01L60 | Clock Assy |
| 27380 | 24897-V0500 | Grommet-Screw |
| 27380 | 25810-01L60 | Clock Assy |
| 27380 | 25810-01L70 | Clock Assy |
| 27380 | 25820-01L00 | Clock Assy |
| 27390 | 24854-V0500 | Knob-Clock |
| 68460 | 68460-01L60 | マスク,クロツク |
| 68460 | 25005-01L70 | Plate-Shield |
| 68460 | 68460-17L60 | マスク,クロツク |
| 851051612 | 08510-51610 | スクリユ-,タツピング |
| OEM | Part name | Category |
|---|---|---|
| 08510-51610 | スクリユ-,タツピング | gauge (1980-11-01 ~ ; ALL) |
| 24854-V0500 | Knob-Clock | gauge (1980-11-01 ~ ; ALL) |
| 24897-V0500 | Grommet-Screw | gauge (1980-11-01 ~ ; ALL) |
| 25005-01L70 | Plate-Shield | gauge (1980-11-01 ~ ; ALL) |
| 25810-01L60 | Clock Assy | gauge (1980-11-01 ~ ; ALL) |
| 25810-01L70 | Clock Assy | gauge (1980-11-01 ~ ; ALL) |
| 25820-01L00 | Clock Assy | gauge (1980-11-01 ~ ; ALL) |
| 25820-01L60 | Clock Assy | gauge (1980-11-01 ~ ; ALL) |
| 68460-01L60 | マスク,クロツク | gauge (1980-11-01 ~ ; ALL) |
| 68460-17L60 | マスク,クロツク | gauge (1980-11-01 ~ ; ALL) |
