| 01451-00171 |
SCREW |

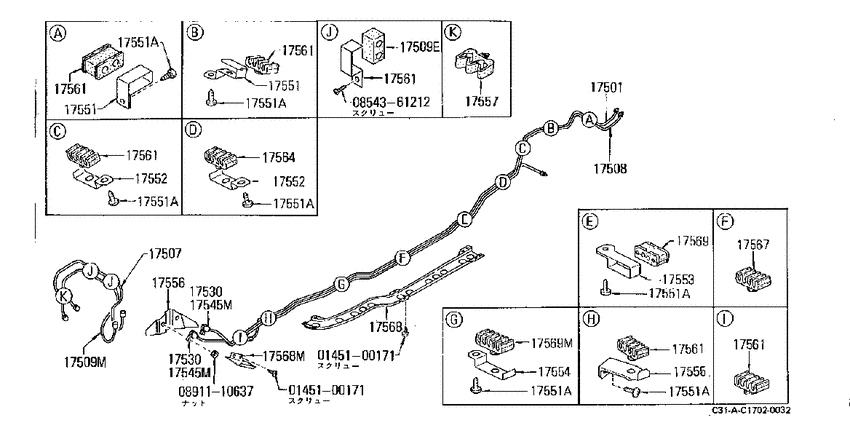

Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 08543-61212 |
スクリユ-,タツピング |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17506-19L00 |
Tube-Fuel |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17508-19L00 |
Tube-Breather |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17530-F1701 |
Connector-Lpg Tube |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17530-P0600 |
Connector |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17548-U6701 |
Insulator |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17551-Q0100 |
Clip-Fuel Tube, No 1 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17555-Q0800 |
Clip-Fuel Tube, No 3 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17561-04L00 |
Insulator-Fuel Tube, No 4 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17561-04L10 |
Insulator-Fuel Tube |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17561-Q0801 |
Insulator-Fuel Tube |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17565-Q0800 |
Insulator-Fuel Tube, No 7 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17571-01L01 |
Clip-Fuel Tube, No 1 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17573-01L01 |
Clip-Fuel Tube, No 6 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17575-01L00 |
Protector-Fuel Hose |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 17576-01L02 |
Protector-Fuel Tube |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 46210-19L00 |
Tube-Lpg Vaporizer, No 2 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 46212-19L00 |
Tube-Fuel, Feed |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 46271-19L00 |
Clip |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 46272-F1700 |
Clip-Fuel Tube, No 3 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
| 46279-M7900 |
Clip-Fuel Tube, No 4 |
Fuel piping (1983-10-01 ~ ; 全体図; Z18P) |
