Search › Model › C31
C31

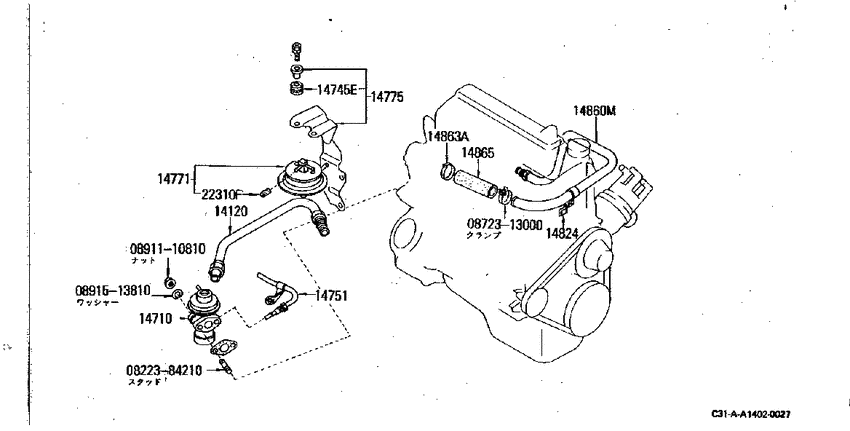

Egr parts (1983-10-01 ~ ; Z18P) 15
| # | OEM | Part name |
|---|---|---|
| 14120 | 14120-W3867 | Egr Tube |
| 14710 | 14710-W0560 | Exhaust Gas Recircuration Valve |
| 14745 | 14746-H8201 | Mounting Rubber |
| 14771 | 14772-W0560 | Valve Assy-Vvt |
| 14775 | 14775-W1601 | Bracket-Vvt Valve |
| 14824 | 14824-W7002 | Pair-Pipe Bracket |
| 14860 | 14823-W3410 | Pair-Pipe |
| 14863 | 14867-W7000 | Clamp-Hose |
| 14865 | 14860-W1300 | Pair-Pipe |
| 14865 | 14860-07P05 | Hose-Air |
| 22310 | 16599-W7000 | Cap-Connector |
| 822384210 | 08223-84210 | スタツド |
| 872313000 | 08723-13000 | CLAMP-HOSE |
| 891110810 | 08911-10810 | NUT |
| 891513810 | 08915-13810 | ワツシヤ-,スプリング |
| OEM | Part name | Category |
|---|---|---|
| 08223-84210 | スタツド | Egr parts (1983-10-01 ~ ; Z18P) |
| 08723-13000 | CLAMP-HOSE | Egr parts (1983-10-01 ~ ; Z18P) |
| 08911-10810 | NUT | Egr parts (1983-10-01 ~ ; Z18P) |
| 08915-13810 | ワツシヤ-,スプリング | Egr parts (1983-10-01 ~ ; Z18P) |
| 14120-W3867 | Egr Tube | Egr parts (1983-10-01 ~ ; Z18P) |
| 14710-W0560 | Exhaust Gas Recircuration Valve | Egr parts (1983-10-01 ~ ; Z18P) |
| 14746-H8201 | Mounting Rubber | Egr parts (1983-10-01 ~ ; Z18P) |
| 14772-W0560 | Valve Assy-Vvt | Egr parts (1983-10-01 ~ ; Z18P) |
| 14775-W1601 | Bracket-Vvt Valve | Egr parts (1983-10-01 ~ ; Z18P) |
| 14823-W3410 | Pair-Pipe | Egr parts (1983-10-01 ~ ; Z18P) |
| 14824-W7002 | Pair-Pipe Bracket | Egr parts (1983-10-01 ~ ; Z18P) |
| 14860-07P05 | Hose-Air | Egr parts (1983-10-01 ~ ; Z18P) |
| 14860-W1300 | Pair-Pipe | Egr parts (1983-10-01 ~ ; Z18P) |
| 14867-W7000 | Clamp-Hose | Egr parts (1983-10-01 ~ ; Z18P) |
| 16599-W7000 | Cap-Connector | Egr parts (1983-10-01 ~ ; Z18P) |
