Search › Model › C31
C31

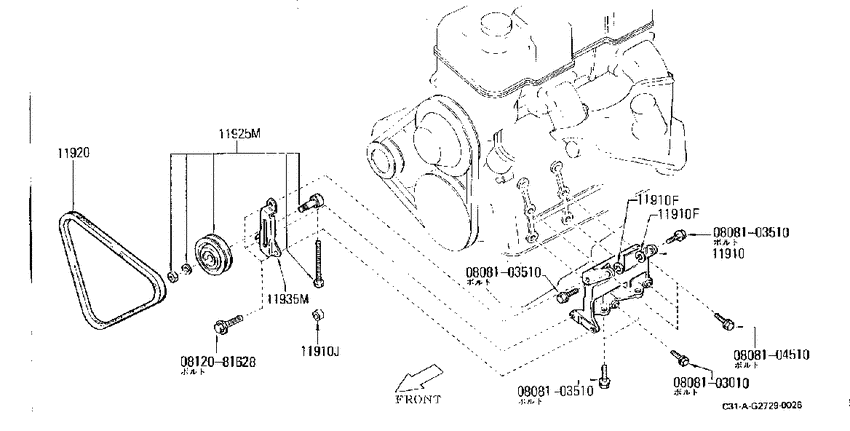

Compressor mounting & fitting (1983-10-01 ~ ; エアコン用; *Z18P) 7
| # | OEM | Part name |
|---|---|---|
| 11910 | 11910-11L00 | Bracket-Compressor |
| 11910 | 11912-P8100 | Bush-Compressor Bracket |
| 11925 | 11925-W1500 | Pulley Assy-Idler, Compressor |
| 11935 | 11926-11L00 | Bracket-Idler Pulley |
| 808104510 | 08081-04510 | Bolt-hexagon |
| 808104510 | 08081-0451A | Bolt-hexagon |
| 812081628 | 08120-81628 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08081-04510 | Bolt-hexagon | Compressor mounting & fitting (1983-10-01 ~ ; エアコン用; *Z18P) |
| 08081-0451A | Bolt-hexagon | Compressor mounting & fitting (1983-10-01 ~ ; エアコン用; *Z18P) |
| 08120-81628 | Bolt-hexagon | Compressor mounting & fitting (1983-10-01 ~ ; エアコン用; *Z18P) |
| 11910-11L00 | Bracket-Compressor | Compressor mounting & fitting (1983-10-01 ~ ; エアコン用; *Z18P) |
| 11912-P8100 | Bush-Compressor Bracket | Compressor mounting & fitting (1983-10-01 ~ ; エアコン用; *Z18P) |
| 11925-W1500 | Pulley Assy-Idler, Compressor | Compressor mounting & fitting (1983-10-01 ~ ; エアコン用; *Z18P) |
| 11926-11L00 | Bracket-Idler Pulley | Compressor mounting & fitting (1983-10-01 ~ ; エアコン用; *Z18P) |
