Search › Model › C31
C31

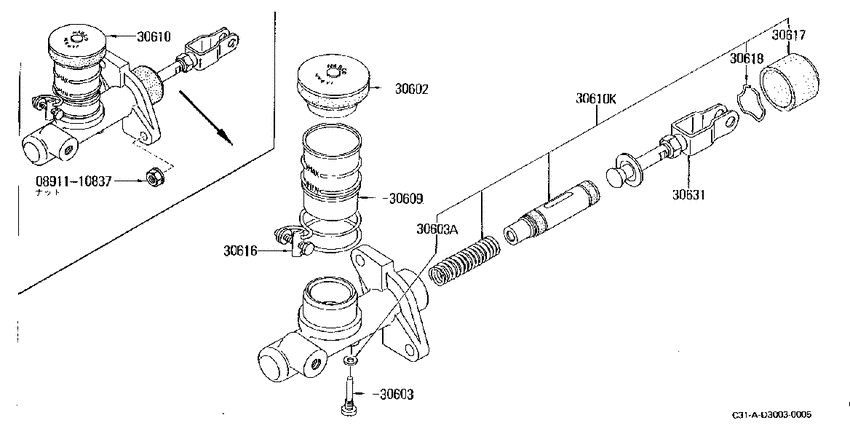

Clutch master cylinder (1982-10-01 ~ ; MT) 10
| # | OEM | Part name |
|---|---|---|
| 30603 | 46032-27260 | Stopper-Screw |
| 30609 | 30617-N8001 | Reservoir-Oil, Clutch |
| 30610 | 30610-28L01 | Cylinder Assy-Clutch Master |
| 30610 | 30611-01L25 | Piston Kit-Clutch Master Cylinder |
| 30610 | 30611-N4025 | Piston Kit-Clutch Master Cylinder |
| 30610 | 30611-10V26 | Piston kit-clutch master cylinder |
| 30617 | 46100-28600 | Cover-Dust |
| 30617 | 46100-S5000 | Cover-Dust |
| 30631 | 30631-28L01 | Rod Assy-Push |
| 891110837 | 08911-10837 | ナツト,ヘクサゴン |
| OEM | Part name | Category |
|---|---|---|
| 08911-10837 | ナツト,ヘクサゴン | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 30610-28L01 | Cylinder Assy-Clutch Master | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 30611-01L25 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 30611-10V26 | Piston kit-clutch master cylinder | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 30611-N4025 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 30617-N8001 | Reservoir-Oil, Clutch | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 30631-28L01 | Rod Assy-Push | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 46032-27260 | Stopper-Screw | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 46100-28600 | Cover-Dust | Clutch master cylinder (1982-10-01 ~ ; MT) |
| 46100-S5000 | Cover-Dust | Clutch master cylinder (1982-10-01 ~ ; MT) |
