C31

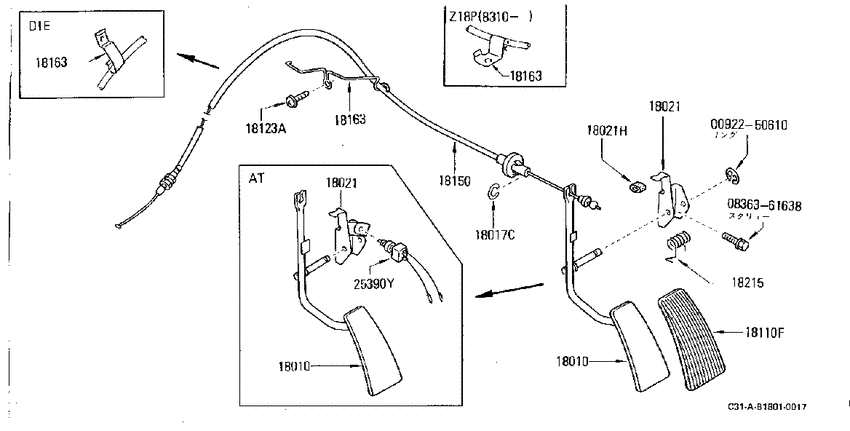

ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1983-10-01 ~ ; Z18P) 7
| # | OEM | Part name |
|---|---|---|
| 18010 | 18010-01L02 | Lever Assy-Pedal |
| 18021 | 18021-01L02 | Bracket-Pedal Lever |
| 18110 | 18014-W1000 | Pad-Accelerator Pedal |
| 18150 | 18201-19L00 | Wire Assy-Accelerator |
| 18163 | 18167-19L00 | Clip-Wire, Accelerator |
| 18215 | 18115-04S00 | Spring-Return |
| 836361638 | 08363-61638 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08363-61638 | スクリユ-,マシン | ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1983-10-01 ~ ; Z18P) |
| 18010-01L02 | Lever Assy-Pedal | ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1983-10-01 ~ ; Z18P) |
| 18014-W1000 | Pad-Accelerator Pedal | ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1983-10-01 ~ ; Z18P) |
| 18021-01L02 | Bracket-Pedal Lever | ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1983-10-01 ~ ; Z18P) |
| 18115-04S00 | Spring-Return | ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1983-10-01 ~ ; Z18P) |
| 18167-19L00 | Clip-Wire, Accelerator | ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1983-10-01 ~ ; Z18P) |
| 18201-19L00 | Wire Assy-Accelerator | ｱｸｾﾙﾚ-ﾀ- ﾘﾝｹ-ｼﾞ (1983-10-01 ~ ; Z18P) |
