Search › Model › C31
C31

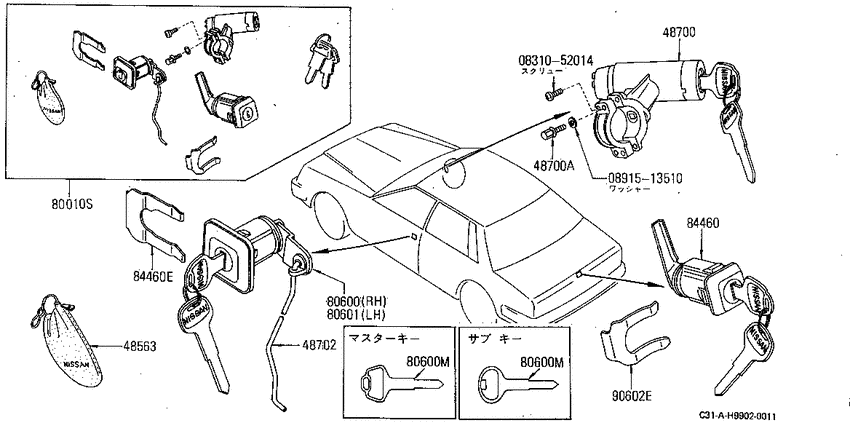

ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) 11
| # | OEM | Part name |
|---|---|---|
| 48563 | 80563-68101 | Case Assy-Key |
| 48700 | 48700-07L25 | ロツク セツト,ステアリング |
| 48700 | 48700-F5010 | Lock Set-Steering |
| 48700 | 48703-Y4000 | Screw-Steering Lock |
| 48702 | 80612-01L00 | Clamp-Steering Lock |
| 48702 | 80613-01L00 | Clamp-Steering Lock |
| 84460 | 80590-21S00 | Clip-Retaining, Cylinder Lock |
| 84460 | 80590-F5000 | Clip-Retaining, Cylinder Lock |
| 90602 | 80590-01L10 | Clip-Retaining, Cylinder Lock |
| 831052014 | 08310-52014 | スクリユ-,マシン |
| 891513510 | 08915-13510 | ワツシヤ-,スプリング |
| OEM | Part name | Category |
|---|---|---|
| 08310-52014 | スクリユ-,マシン | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 08915-13510 | ワツシヤ-,スプリング | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 48700-07L25 | ロツク セツト,ステアリング | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 48700-F5010 | Lock Set-Steering | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 48703-Y4000 | Screw-Steering Lock | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 80563-68101 | Case Assy-Key | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 80590-01L10 | Clip-Retaining, Cylinder Lock | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 80590-21S00 | Clip-Retaining, Cylinder Lock | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 80590-F5000 | Clip-Retaining, Cylinder Lock | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 80612-01L00 | Clamp-Steering Lock | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
| 80613-01L00 | Clamp-Steering Lock | ｷ- ｾﾂﾄ (1980-11-01 ~ ; ALL) |
