| 01555-00241 |
CLIP |

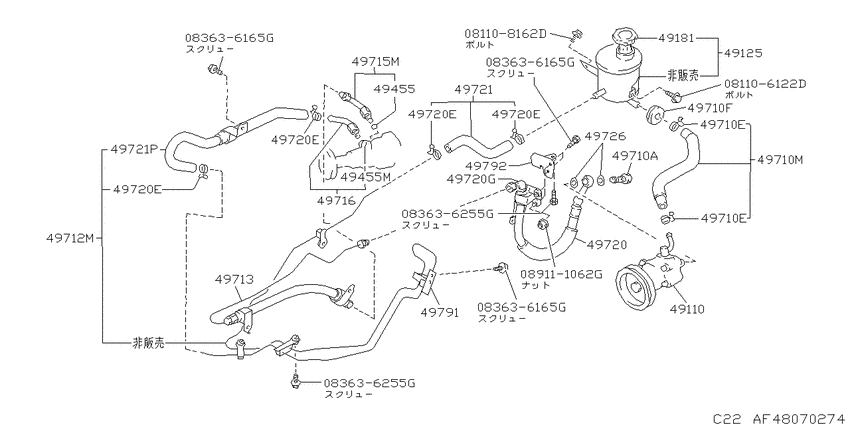

power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 08110-6122D |
Bolt-hexagon |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 08110-8162D |
Bolt-hexagon |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 08363-6255G |
SCREWMACHINE |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 27035-21002 |
Grommet |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 48361-55S00 |
Bolt |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49110-30C10 |
Pump Assy-Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49110-G5500 |
Pump Assy-Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49180-G5500 |
Tank Assy-Reservoir |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49180-G8120 |
Tank Assy-Reservoir |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49180-G8500 |
Tank Assy-Reservoir |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49181-W1700 |
Cap Assy-Pump |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49591-50L28 |
Seal Kit-Power Steering Pump |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49711-G8100 |
Tube Assy-Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49712-G5500 |
Tube Assy-Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49713-G8111 |
Tube-Connector To Pump |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49714-G8100 |
Tube-Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49715-G5100 |
Tube Assy-Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49716-G5500 |
Tube-Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49716-G8112 |
Tube Assy-Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49717-G5502 |
Hose-Tube To Pump |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49717-G8110 |
Hose-Tube To Pump |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49717-G8111 |
Hose-Tube To Pump |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49720-G5500 |
Hose Assy-Pressure, Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49720-G8110 |
Hose Assy-Pressure, Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49721-G5500 |
Hose Assy-Control Valve |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49721-G8110 |
Hose Assy-Control Valve |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49724-G8102 |
Hose & Tube Assy-Return, Power Steering |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49782-G8110 |
Bracket-Hose |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49787-G8110 |
Support-Tube Clamp |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
| 49787-G8200 |
Support-Tube Clamp |
power steering control (1988-09-01 ~ ; 全体図; DIE.4WD) |
