Search › Model › C22

C22

Nissan VANETTE · 1985 · 4,222 parts · 253 categories

4,222 items

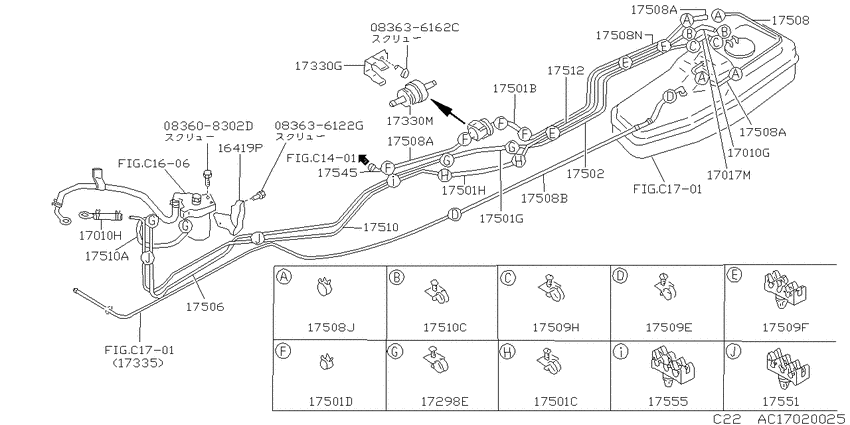

Fuel piping (1985-09-01 ~ ; LD20#.2WD) 32

#	OEM	Part name
16419	16419-G5500	Bracket-Strainer
16419	16419-G5505	Bracket-Strainer
16419	16419-G5510	Bracket-Strainer
17010	08740-17031	HOSE-FUEL
17298	01555-00191	CLAMP
17330	17375-G5100	Bracket-Valve, Fuel Check
17330	17375-G5101	Bracket-Valve, Fuel Check
17330	17370-64U00	Valve Assy-Check, Fuel
17501	01555-00411	CLAMP-HOSE
17501	16439-A0602	Clamp-Hose
17501	08740-16031	HOSE-FUEL
17502	17502-G5500	Tube-Fuel, No 1
17502	17502-G5501	Tube-Fuel, No 1
17506	17506-G5501	Tube-Fuel, No 2
17506	17506-G5502	Tube-Fuel, No 2
17508	17335-G5100	Tube-Breather
17508	17336-G5100	Tube-Breather
17509	01555-00211	CLAMP-HOSE
17509	01555-00221	CLAMP-HOSE
17509	01555-00391	CLAMP-HOSE
17509	46271-V5701	Clip
17509	01558-00131	CLAMP-HOSE
17510	17510-G5501	Tube-Fuel Return
17510	01558-00401	CLAMP-HOSE
17512	17511-G5500	Tube-Fuel Return
17512	17511-G5501	Tube-Fuel Return
17512	17511-G5502	Tube-Fuel Return
17545	17235-G5100	Connector-Fuel Tube
17551	46289-G5503	Clip-Fuel Tube, No 1
17555	46289-G5513	Clip-Fuel Tube, No 5
83608302	08360-8302D	スクリユ-,マシン
83636162	08363-6162C	スクリユ-,マシン

OEM	Part name	Category
01555-00191	CLAMP	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
01555-00211	CLAMP-HOSE	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
01555-00221	CLAMP-HOSE	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
01555-00391	CLAMP-HOSE	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
01555-00411	CLAMP-HOSE	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
01558-00131	CLAMP-HOSE	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
01558-00401	CLAMP-HOSE	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
08360-8302D	スクリユ-,マシン	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
08363-6162C	スクリユ-,マシン	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
08740-16031	HOSE-FUEL	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
08740-17031	HOSE-FUEL	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
16419-G5500	Bracket-Strainer	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
16419-G5505	Bracket-Strainer	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
16419-G5510	Bracket-Strainer	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
16439-A0602	Clamp-Hose	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17235-G5100	Connector-Fuel Tube	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17335-G5100	Tube-Breather	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17336-G5100	Tube-Breather	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17370-64U00	Valve Assy-Check, Fuel	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17375-G5100	Bracket-Valve, Fuel Check	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17375-G5101	Bracket-Valve, Fuel Check	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17502-G5500	Tube-Fuel, No 1	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17502-G5501	Tube-Fuel, No 1	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17506-G5501	Tube-Fuel, No 2	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17506-G5502	Tube-Fuel, No 2	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17510-G5501	Tube-Fuel Return	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17511-G5500	Tube-Fuel Return	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17511-G5501	Tube-Fuel Return	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
17511-G5502	Tube-Fuel Return	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
46271-V5701	Clip	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
46289-G5503	Clip-Fuel Tube, No 1	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
46289-G5513	Clip-Fuel Tube, No 5	Fuel piping (1985-09-01 ~ ; LD20#.2WD)
