Search › Model › C12V
C12V

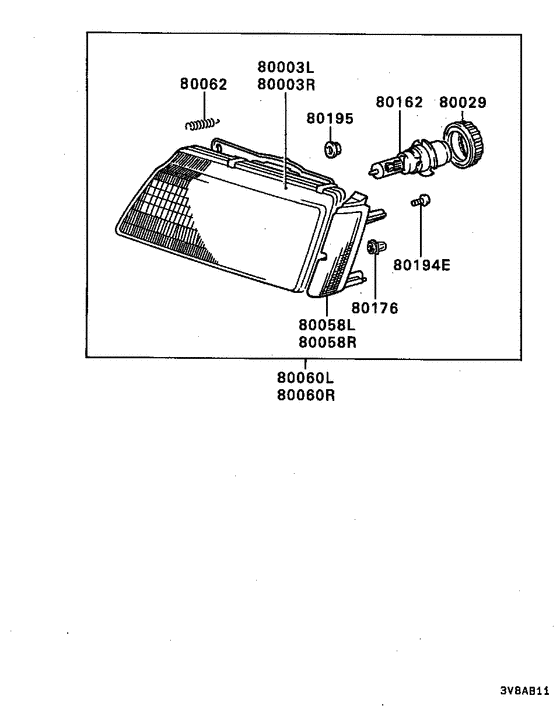

Headlamp 10
| # | OEM | Part name |
|---|---|---|
| 80029 | MB509884 | CAP,HEADLAMP BULB LOCK |
| 80058 | MB509885 | LENS,HEADLAMP SIDE DUMMY,LH |
| 80058 | MB509886 | LENS,HEADLAMP SIDE DUMMY,RH |
| 80060 | MB527541 | HEADLAMP KIT,LH |
| 80060 | MB527542 | HEADLAMP KIT,RH |
| 80062 | MB509888 | SPRING,HEADLAMP EXTENSION |
| 80162 | MS820958 | BULB,HEADLAMP |
| 80176 | MB509891 | BEARING,HEADLAMP |
| 80194 | MB543989 | SCREW,HEADLAMP |
| 80195 | MS440522 | NUT, FUEL TANK - Washer assembled,6 |
| OEM | Part name | Category |
|---|---|---|
| MB509884 | CAP,HEADLAMP BULB LOCK | Headlamp |
| MB509885 | LENS,HEADLAMP SIDE DUMMY,LH | Headlamp |
| MB509886 | LENS,HEADLAMP SIDE DUMMY,RH | Headlamp |
| MB509888 | SPRING,HEADLAMP EXTENSION | Headlamp |
| MB509891 | BEARING,HEADLAMP | Headlamp |
| MB527541 | HEADLAMP KIT,LH | Headlamp |
| MB527542 | HEADLAMP KIT,RH | Headlamp |
| MB543989 | SCREW,HEADLAMP | Headlamp |
| MS440522 | NUT, FUEL TANK - Washer assembled,6 | Headlamp |
| MS820958 | BULB,HEADLAMP | Headlamp |
