C12A

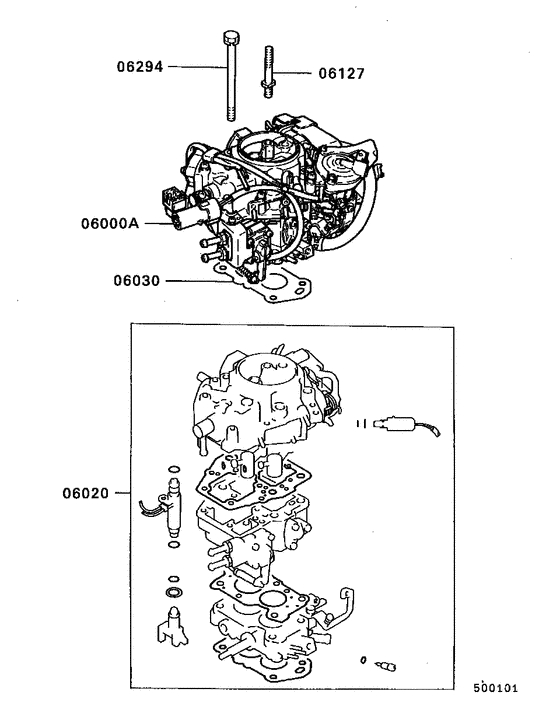

Carburetor (-8605.3 WITH UCC (ASSEMBLY)) 11
| # | OEM | Part name |
|---|---|---|
| 6000 | MD127994 | CARBURETOR ASSY |
| 6000 | MD105143 | CARBURETOR ASSY |
| 6020 | MD601737 | GASKET KIT, CARB |
| 6020 | MD612738 | GASKET KIT,CARB |
| 6020 | MD617268 | GASKET KIT,CARB |
| 6030 | MD021255 | GASKET,CARB |
| 6030 | MD091628 | GASKET, CARB |
| 6127 | MD600190 | STUD, CARB - 8x58 |
| 6294 | MD025419 | BOLT, CARB - Washer assembled,8x110 |
| 6294 | MD025519 | BOLT, CARB - Washer assembled,8x110 |
| 6294 | MD027419 | BOLT, CARB - Washer assembled,8x117 |
| OEM | Part name | Category |
|---|---|---|
| MD021255 | GASKET,CARB | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD025419 | BOLT, CARB - Washer assembled,8x110 | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD025519 | BOLT, CARB - Washer assembled,8x110 | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD027419 | BOLT, CARB - Washer assembled,8x117 | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD091628 | GASKET, CARB | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD105143 | CARBURETOR ASSY | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD127994 | CARBURETOR ASSY | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD600190 | STUD, CARB - 8x58 | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD601737 | GASKET KIT, CARB | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD612738 | GASKET KIT,CARB | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
| MD617268 | GASKET KIT,CARB | Carburetor (-8605.3 WITH UCC (ASSEMBLY)) |
