C11V

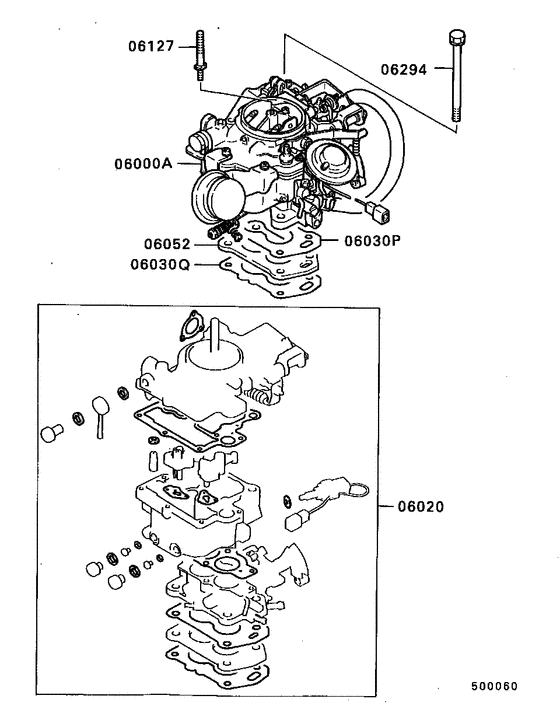

Carburetor (-8909.3 (ASSEMBLY)) 12
| # | OEM | Part name |
|---|---|---|
| 6000 | MD092183 | CARBURETOR ASSY |
| 6000 | MD101942 | CARBURETOR ASSY |
| 6000 | MD152666 | CARBURETOR ASSY |
| 6000 | MD171510 | CARBURETOR ASSY |
| 6020 | MD601737 | GASKET KIT, CARB |
| 6020 | MD617510 | GASKET KIT, CARB |
| 6030 | MD095150 | GASKET, CARB |
| 6030 | MD091628 | GASKET, CARB |
| 6052 | MD095149 | INSULATOR, CARB HEAT |
| 6127 | MD600190 | STUD, CARB - 8x58 |
| 6294 | MD025419 | BOLT, CARB - Washer assembled,8x110 |
| 6294 | MD025519 | BOLT, CARB - Washer assembled,8x110 |
| OEM | Part name | Category |
|---|---|---|
| MD025419 | BOLT, CARB - Washer assembled,8x110 | Carburetor (-8909.3 (ASSEMBLY)) |
| MD025519 | BOLT, CARB - Washer assembled,8x110 | Carburetor (-8909.3 (ASSEMBLY)) |
| MD091628 | GASKET, CARB | Carburetor (-8909.3 (ASSEMBLY)) |
| MD092183 | CARBURETOR ASSY | Carburetor (-8909.3 (ASSEMBLY)) |
| MD095149 | INSULATOR, CARB HEAT | Carburetor (-8909.3 (ASSEMBLY)) |
| MD095150 | GASKET, CARB | Carburetor (-8909.3 (ASSEMBLY)) |
| MD101942 | CARBURETOR ASSY | Carburetor (-8909.3 (ASSEMBLY)) |
| MD152666 | CARBURETOR ASSY | Carburetor (-8909.3 (ASSEMBLY)) |
| MD171510 | CARBURETOR ASSY | Carburetor (-8909.3 (ASSEMBLY)) |
| MD600190 | STUD, CARB - 8x58 | Carburetor (-8909.3 (ASSEMBLY)) |
| MD601737 | GASKET KIT, CARB | Carburetor (-8909.3 (ASSEMBLY)) |
| MD617510 | GASKET KIT, CARB | Carburetor (-8909.3 (ASSEMBLY)) |
