C11

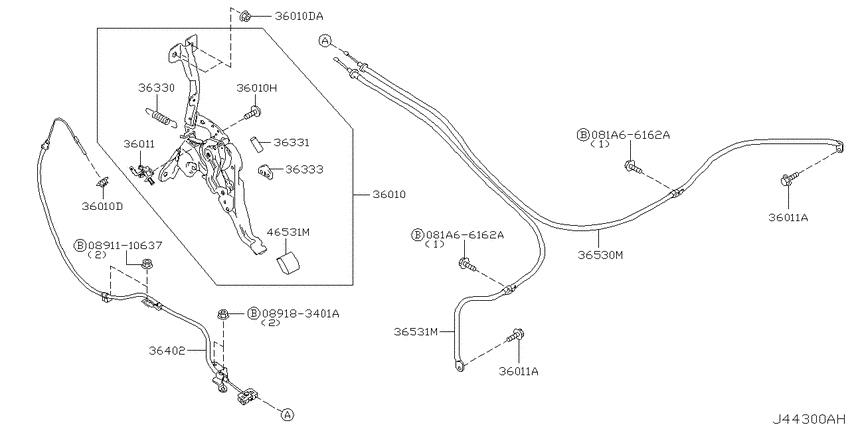

Parking brake control (2004-09-01 ~ 2006-12-01; HR15DE +MR18DE) 7
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-1U600 | Device Assy-Parking Brake Control |
| 36330 | 36330-EN000 | Spring-Return, Pawl |
| 36331 | 36331-EN000 | Silencer-Spring |
| 36333 | 36333-EN000 | Stopper-Rubber |
| 36402 | 36402-ED000 | Cable Assy-Parking Brake, Front |
| 36530 | 36531-ED00A | Cable Assy-Parking, Rear Lh |
| 46531 | 46531-CK000 | Pad-Pedal |
| OEM | Part name | Category |
|---|---|---|
| 36010-1U600 | Device Assy-Parking Brake Control | Parking brake control (2004-09-01 ~ 2006-12-01; HR15DE +MR18DE) |
| 36330-EN000 | Spring-Return, Pawl | Parking brake control (2004-09-01 ~ 2006-12-01; HR15DE +MR18DE) |
| 36331-EN000 | Silencer-Spring | Parking brake control (2004-09-01 ~ 2006-12-01; HR15DE +MR18DE) |
| 36333-EN000 | Stopper-Rubber | Parking brake control (2004-09-01 ~ 2006-12-01; HR15DE +MR18DE) |
| 36402-ED000 | Cable Assy-Parking Brake, Front | Parking brake control (2004-09-01 ~ 2006-12-01; HR15DE +MR18DE) |
| 36531-ED00A | Cable Assy-Parking, Rear Lh | Parking brake control (2004-09-01 ~ 2006-12-01; HR15DE +MR18DE) |
| 46531-CK000 | Pad-Pedal | Parking brake control (2004-09-01 ~ 2006-12-01; HR15DE +MR18DE) |
