Search › Model › C11
C11

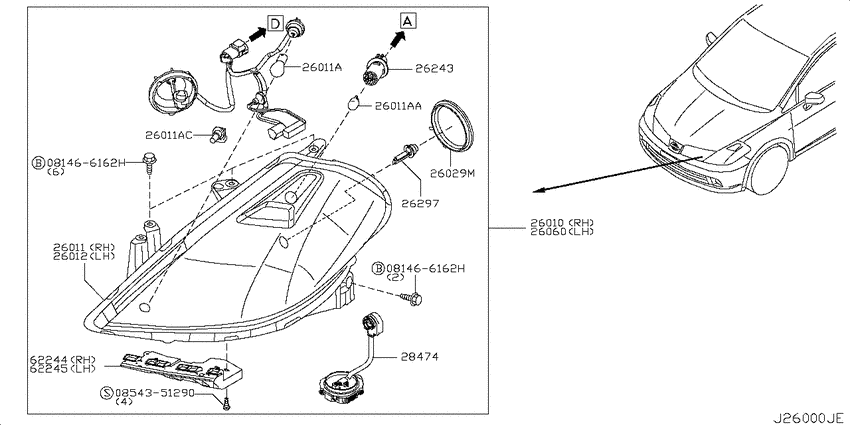

Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) 10
| # | OEM | Part name |
|---|---|---|
| 26010 | 26392-1JY2A | Bolt |
| 26011 | 26015-ED21A | Head Lamp Unit |
| 26011 | 26296-89945 | Bulb |
| 26012 | 26065-ED21A | Head Lamp Unit |
| 26029 | 26029-ED001 | Cover-Socket |
| 26060 | 26060-ED225 | Lamp Assy-Lh |
| 26060 | 26060-ED226 | Lamp Assy-Lh |
| 26243 | 26260-82501 | Socket Assy |
| 26243 | 26260-8L501 | Socket Assy |
| 28474 | 28474-89915 | Control Unit-Xenon Head Lamp |
| OEM | Part name | Category |
|---|---|---|
| 26015-ED21A | Head Lamp Unit | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 26029-ED001 | Cover-Socket | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 26060-ED225 | Lamp Assy-Lh | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 26060-ED226 | Lamp Assy-Lh | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 26065-ED21A | Head Lamp Unit | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 26260-82501 | Socket Assy | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 26260-8L501 | Socket Assy | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 26296-89945 | Bulb | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 26392-1JY2A | Bolt | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
| 28474-89915 | Control Unit-Xenon Head Lamp | Head lamp (2004-09-01 ~ 2006-12-01; ｷｾﾉﾝAFS; HB) |
