BZU600

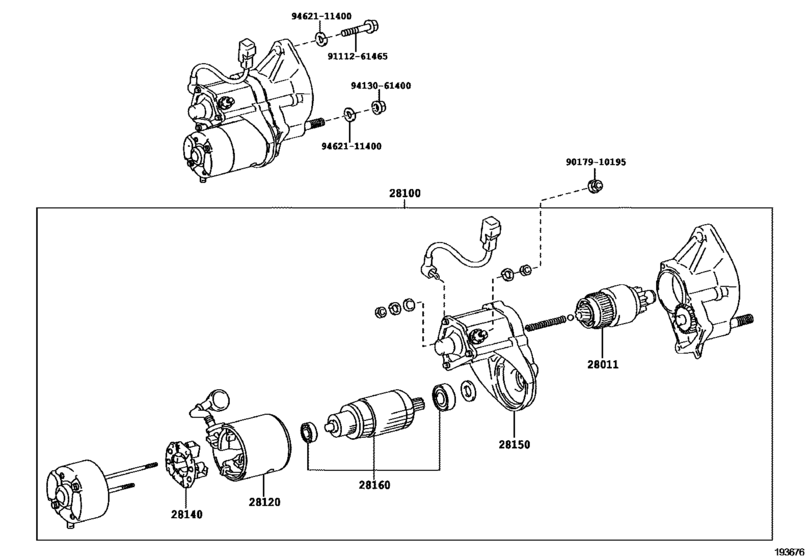

Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) 10
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-54010 | Clutch Sub-Assy, Starter |
| 28100 | 28100-56351 | Starter Assy |
| 28120 | 28120-56350 | Yoke Assy, Starter |
| 28140 | 28140-77090 | Holder Assy, Starter Brush |
| 28150 | 28150-56350 | Switch Assy, Magnet Starter |
| 28160 | 28160-54160 | Armature Assy, Starter |
| 9017910195 | 90179-10195 | NUT WWASHER |
| 9111261465 | 91112-61465 | Bolt |
| 9413061400 | 94130-61400 | Nut, Lock |
| 9462111400 | 94621-11400 | WASHER |
| OEM | Part name | Category |
|---|---|---|
| 28011-54010 | Clutch Sub-Assy, Starter | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 28100-56351 | Starter Assy | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 28120-56350 | Yoke Assy, Starter | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 28140-77090 | Holder Assy, Starter Brush | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 28150-56350 | Switch Assy, Magnet Starter | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 28160-54160 | Armature Assy, Starter | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 90179-10195 | NUT WWASHER | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 91112-61465 | Bolt | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 94130-61400 | Nut, Lock | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
| 94621-11400 | WASHER | Starter ([07.2011 - ] 12V 2.5KW (1107- )1BZFPE) |
