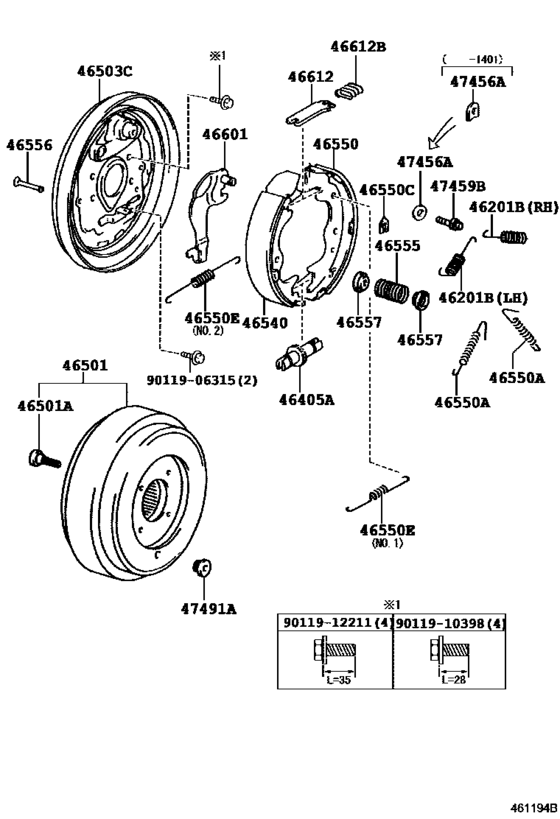

| 46501-37050 |
Drum Sub-Assy, Parking Brake |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 46503-37710 |
Plate Sub-Assy, Parking Brake |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 46540-37040 |
Shoe Assy, Parking Brake, Rh Or Center No.1 |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 46550-37040 |
Shoe Assy, Parking Brake, Rh Or Center No.2 |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 46601-36051 |
Lever Sub-Assy, Parking Brake Shoe |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 46612-36050 |
Strut, Parking Brake Shoe Lever |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 47405-36010 |
Screw Set, Shoe Adjusting, Rh |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 47447-20030 |
Pin, Shoe Hold Down Spring |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 47449-20011 |
Cup, Brake Shoe Hold Down |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 47456-20030 |
Plate, Shoe Guide(For Parking Brake) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 47456-35010 |
Plate, Shoe Guide(For Parking Brake) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 47459-30010 |
Bolt, Parking Brake Shoe Guide Plate Set |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 47491-22020 |
Plug, Shoe Adjusting Hole (For Parking Brake) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90031-01170 |
Bolt, Serration(For Parking Brake Drum) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90119-06315 |
BOLT |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90119-10398 |
BOLT |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90119-12211 |
BOLT WWASHER |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90213-06003 |
Washer, Type C(For Parking Brake Shoe) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90501-16108 |
Spring, Brake Shoe Hold Down |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90504-10010 |
Spring, Compression(For Parking Brake Shoe Strut) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90506-14054 |
Spring, Tension, No.2(For Parking Brake Shoe Return) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90506-23049 |
Spring, Tension, No.2(For Parking Brake Shoe Return) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90507-20020 |
Spring, Tension |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90507-20021 |
Spring, Tension |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
| 90905-06020 |
Spring, Tension, No.1(For Parking Brake Shoe Return) |
Parking Brake & Cable ([07.2011 - ] (1107- )BZU600,XZU600..5F,6FC..20T,40T..IV5,I V6 ; (1505- )6FC..30T..IV6) |
