BZU340

Toyota DYNA-TOYOACE · 2003 · 3,668 parts · 192 categories

3,668 items

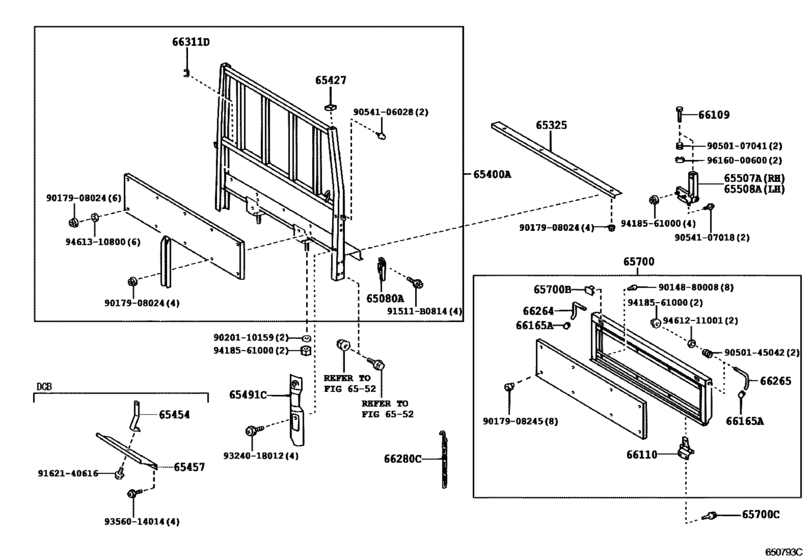

Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU) 38

#	OEM	Part name
65080	65080-92701	Handle Assy, Side Gate Latch
65080	65080-92702	Handle Assy, Side Gate Latch
65325	65325-37030	Plate, Floor Board, Front
65400	65400-3V160	Guard Assy, Rear Body
65427	65427-92800	Cover, Guard Frame
65491	65481-37010	Protector, Front Corner, Rh
65491	65482-37010	Protector, Front Corner, Lh
65507	65507-37040	Support Sub-Assy, Corner, Rh
65508	65508-37040	Support Sub-Assy, Corner, Lh
65700	65700-37070	Gate Assy, Rear Body Tail
65700	90950-01430	Plug, Hole(For Tail Gate)
65700	90119-08464	Bolt, W/washer(For Side Gate, Rh)
66109	66193-37010	Handle Sub-Assy, Side Gate Support Corner
66110	66110-37010	Hinge Assy, Tail Gate
66110	66110-37012	Hinge Assy, Tail Gate
66110	66110-37011	Hinge Assy, Tail Gate
66165	66165-87402	Cap, Gate Latch Handle
66165	66165-92701	Cap, Gate Latch Handle
66264	66264-37010	Handle, Tail Gate Latch, Rh
66265	66265-37010	Handle, Tail Gate Latch, Lh
66280	66280-37020	Chain Assy, Tail Gate
66311	66312-37030	Hook, Rope
91511	91511-B0814	BOLT
9014880008	90148-80008	Bolt
9017908024	90179-08024	NUT
9017908245	90179-08245	New Genuine Part
9020110159	90201-10159	New Genuine Part
9050107041	90501-07041	SPRING
9050145042	90501-45042	SPRING COMPRESSION
9054106028	90541-06028	New Genuine Part
9054107018	90541-07018	Cushion, Tail Gate Side
9162140616	91621-40616	Step Cover Bolt
9324018012	93240-18012	New Genuine Part
9356014014	93560-14014	SCREW
9418561000	94185-61000	NUTLOCK
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)
9461310800	94613-10800	Spacer (For Control Select Lever Support)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
65080-92701	Handle Assy, Side Gate Latch	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65080-92702	Handle Assy, Side Gate Latch	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65325-37030	Plate, Floor Board, Front	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65400-3V160	Guard Assy, Rear Body	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65427-92800	Cover, Guard Frame	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65481-37010	Protector, Front Corner, Rh	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65482-37010	Protector, Front Corner, Lh	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65507-37040	Support Sub-Assy, Corner, Rh	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65508-37040	Support Sub-Assy, Corner, Lh	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
65700-37070	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66110-37010	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66110-37011	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66110-37012	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66165-87402	Cap, Gate Latch Handle	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66165-92701	Cap, Gate Latch Handle	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66193-37010	Handle Sub-Assy, Side Gate Support Corner	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66264-37010	Handle, Tail Gate Latch, Rh	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66265-37010	Handle, Tail Gate Latch, Lh	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66280-37020	Chain Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
66312-37030	Hook, Rope	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90119-08464	Bolt, W/washer(For Side Gate, Rh)	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90148-80008	Bolt	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90179-08024	NUT	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90179-08245	New Genuine Part	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90201-10159	New Genuine Part	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90501-07041	SPRING	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90501-45042	SPRING COMPRESSION	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90541-06028	New Genuine Part	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90541-07018	Cushion, Tail Gate Side	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
90950-01430	Plug, Hole(For Tail Gate)	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
91511-B0814	BOLT	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
91621-40616	Step Cover Bolt	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
93240-18012	New Genuine Part	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
93560-14014	SCREW	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
94185-61000	NUTLOCK	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
94613-10800	Spacer (For Control Select Lever Support)	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Rear Body Guard Frame & Tail Gate ([10.2006 - ] (0610- )BZU340,TRU340..CBU ; (0610- )BZU30 0,TRU300..T3..CBU ; (0610- )XZU3 48,378,388..DCB.. CBU)
